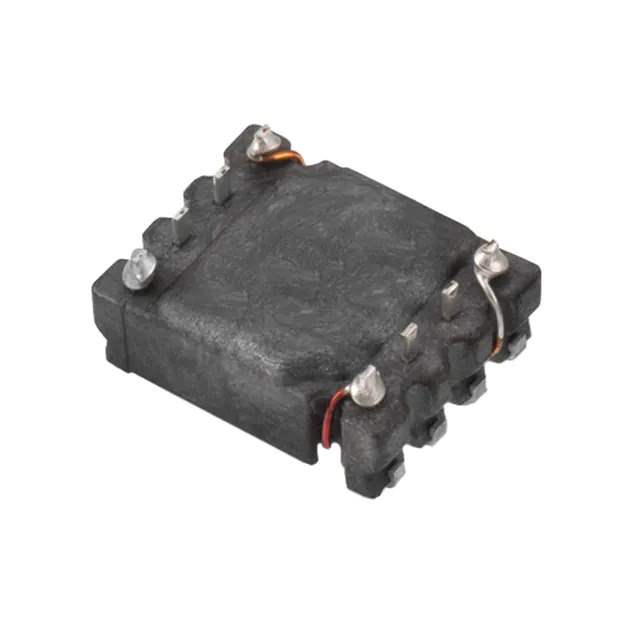

744202 Real Image
Same model may have multiple batches, images only for reference.

744202

Part No 744202
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 1MH 350MA 4LN SMD
Datasheet
744202 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 4
Inductance @ Frequency 1 mH @ 100 kHz
Current Rating (Max) 350mA
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Height (Max) 0.238" (6.05mm)
Package / Case Horizontal, 8 Gull Wing
Standard Package 600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 547213-744202
Ultra Librarian 3D Model Ultra Librarian 744202 CAD Model

Description

The WE-SL is a common mode choke designed for signal line filtering and is part of the WE-SL series from Wurth Electronics Inc.

  • Voltage Rating: 80V DC
  • Current Rating: 350mA
  • Height: 0.238" (6.05mm)
  • Lines: 4
  • Inductance: 1 mH @ 100 kHz
  • Mounting Type: Surface Mount
  • Package/Case: Horizontal with 8 gull wing pins
  • Operating Temperature Range: -40°C to 125°C
  • Status: Active
  • Suitable for: Signal line filtering
