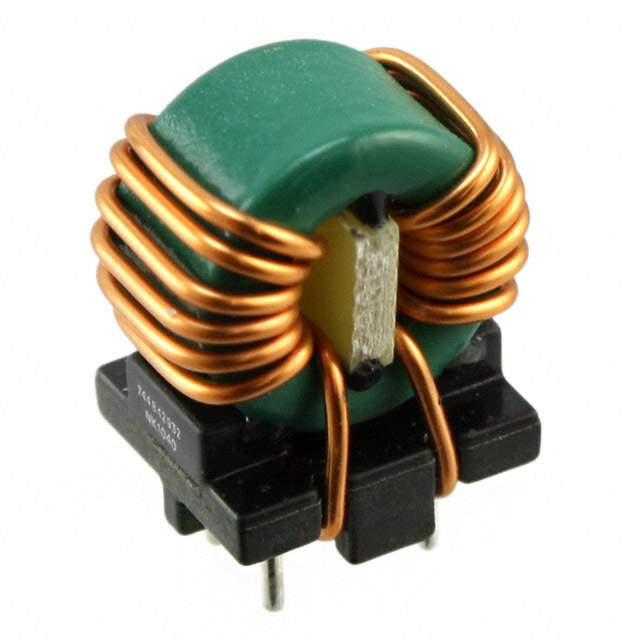

744842932 Real Image
Same model may have multiple batches, images only for reference.

744842932

Part No 744842932
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 32UH 8.5A 2LN TH
Datasheet
744842932 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-CMB
Package Tray
Product Status Active
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 32 µH @ 100 kHz
Current Rating (Max) 8.5A
DC Resistance (DCR) (Max) 6mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 0.728" L x 0.571" W (18.50mm x 14.50mm)
Height (Max) 0.866" (22.00mm)
Package / Case Vertical, 4 PC Pin
Standard Package 40 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 857619-744842932
Ultra Librarian 3D Model Ultra Librarian 744842932 CAD Model

Description

The WE-CMB series by Wurth Electronics Inc offers common mode chokes for power line filtering.

  • Size: 0.728" L x 0.571" W (18.50mm x 14.50mm)
  • Current Rating: 8.5A
  • Type: Through-hole component
  • Package: Vertical, 4 PC pin
  • Inductance: 32 µH @ 100 kHz
  • DC Resistance (DCR): 6mOhm (max)
  • Operating Temperature Range: -40°C to 125°C
  • Status: Active
  • Standard Package: 40 pcs
