Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL2
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 3.3 kOhms @ 6 MHz
Inductance @ Frequency 500 µH @ 100 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 150mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) 0.209" (5.30mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 547223-744223
Ultra Librarian 3D Model Ultra Librarian 744223 CAD Model

Description

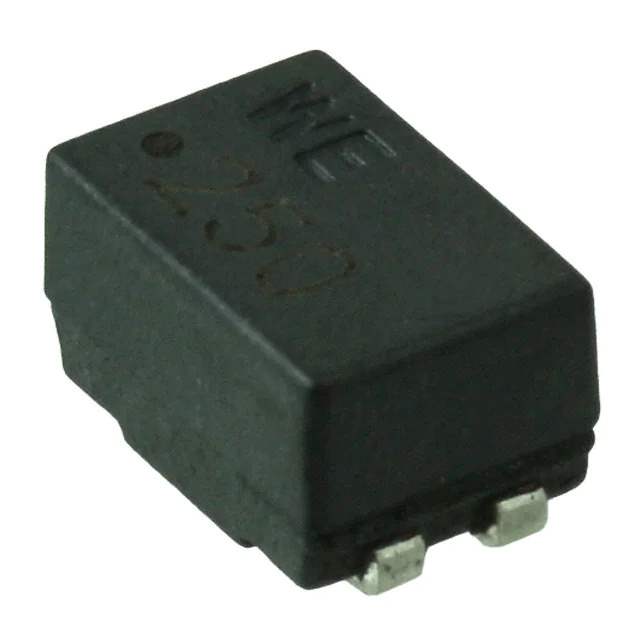

The WE-SL2 series is a range of common mode chokes designed for signal line filtering applications.

  • Package: tape & reel
  • Size: 0.362" L x 0.236" W (9.20mm x 6.00mm)
  • Voltage Rating: 80V
  • Current Rating: 1A
  • Suitability: suitable for filtering low voltage and low current signals
  • Impedance: 3.3 kOhms @ 6 MHz
  • Inductance: 500 µH @ 100 kHz
  • Temperature Range: -40°C to 125°C
  • Conditions: suitable for a wide range of operating conditions
  • Compliance: RoHS compliant
  • Package: surface mount package
  • Benefit: excellent filtering capabilities and compact size
  • Verdict: an ideal choice for signal line filtering applications
