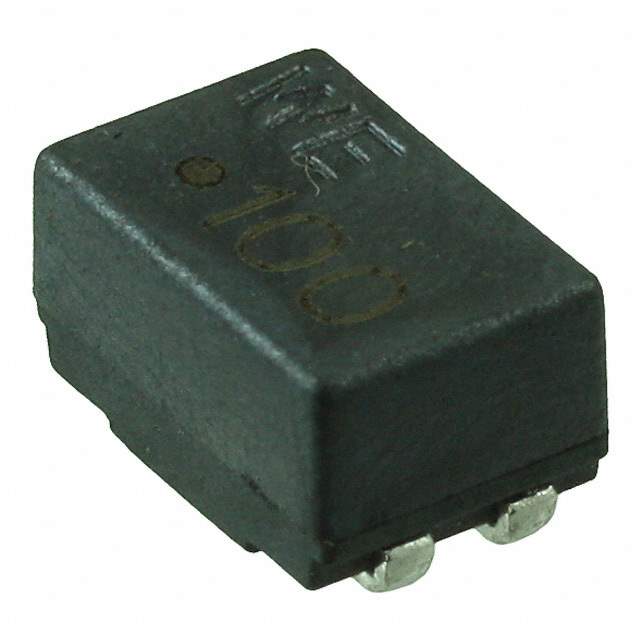

744220 Real Image
Same model may have multiple batches, images only for reference.

744220

Part No 744220
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 4.7MH 500MA 2LN 20K OHM SMD
Datasheet
744220 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Wurth Electronics Inc
Series WE-SL2
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 20 kOhms @ 1 MHz
Inductance @ Frequency 4.7 mH @ 100 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 750mOhm
Voltage Rating - DC 80V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max) 0.205" (5.20mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1155976-744220
Ultra Librarian 3D Model Ultra Librarian 744220 CAD Model

Description

The WE-SL2 is a common mode choke from Wurth Electronics Inc. WE-SL2 from Wurth Electronics Inc. is part of the WE-SL2 series and is designed for signal line filtering.

  • Series: WE-SL2
  • Voltage Rating: 80V DC
  • Current Rating: 500mA
  • Dimensions (L x W): 0.362" x 0.236" (9.20mm x 6.00mm)
  • Height: 0.205" (5.20mm)
  • Configuration: 2-Line
  • Impedance: 20 kOhms @ 1 MHz
  • Inductance: 4.7 mH @ 100 kHz
  • DC Resistance (DCR): 750mOhm (Max)
  • Mounting Type: Surface Mount
  • Packaging: Tape and Reel
  • PC Pads: 4
  • Temperature Range: -40°C to 125°C
  • Status: Active
  • Approval Agency: -
