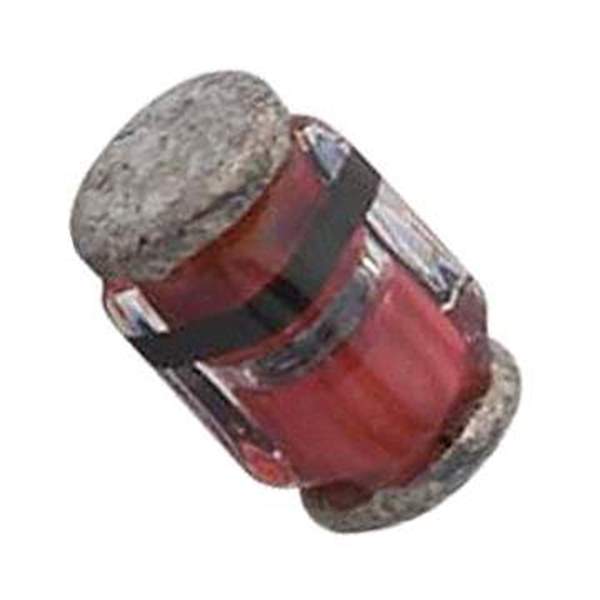

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 250mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 100mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 50ns
Current - Reverse Leakage @ Vr 100nA @ 200V
Capacitance @ Vr, F 1.5pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package MicroMELF
Operating Temperature - Junction 175°C (Max)
Win Source Part Number 1022225-BAV303-TR
Family Name BAV303
Introduction Date April 08, 2002
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BAV303-TR CAD Model

Description

This electronic component is manufactured by Vishay and has a Win Source Part Number of 1022225-BAV303-TR. It comes in a reel - TR packaging and has SMD (SMT) mounting.

  • Product Type: Standard diode
  • Maximum DC Reverse Voltage: 200V
  • Average Rectified Current: 250mA (DC)
  • Maximum Forward Voltage: 1V @ 100mA
  • Reverse Recovery Time: 50ns
  • Current Reverse Leakage at Vr: 100nA @ 200V
  • Capacitance at Vr, F: 1.5pF @ 0V, 1MHz
  • Operating Temperature Range: 175°C (Max)
  • Family Name: BAV303
  • Category: Discrete Semiconductor Products
  • Status: Active
  • Case/Package: MicroMELF
  • Recovery Speed: Fast recovery speed of 200mA (Io)
  • Supply and Demand Status: Sufficient
