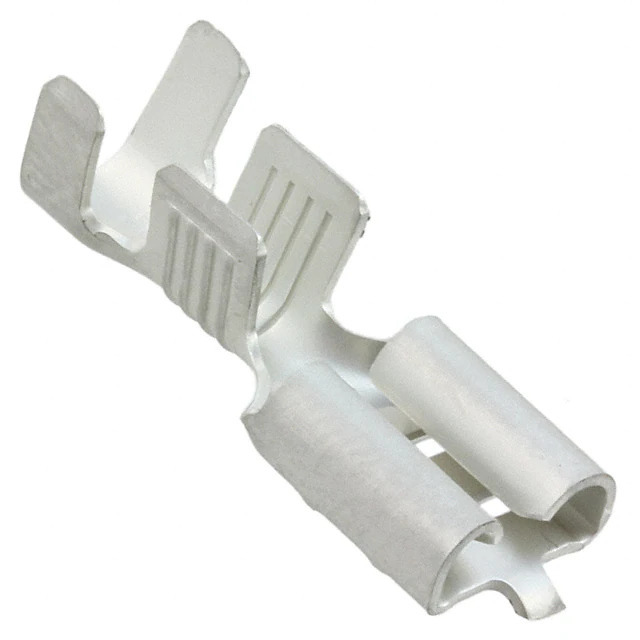

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.250" (6.35mm)
Tab Thickness 0.032" (0.81mm)
Tab Length 0.302" (7.67mm)
Length - Overall 0.770" (19.56mm)
Termination Crimp
Wire Gauge 10-12 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Phosphor Bronze
Contact Finish Tin
Insulation Diameter 0.150" ~ 0.200" (3.81mm ~ 5.08mm)
Base Product Number 62428
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364834-62428-3
Ultra Librarian 3D Model Ultra Librarian 62428-3 CAD Model

Description

The Faston series from TE Connectivity AMP Connectors offers reliable quick connect and quick disconnect terminals.

  • Part Number: 1364834-62428-3
  • Terminal Type: Female, Standard
  • Wire Gauge: 10 to 12 AWG
  • Contact Material: Phosphor Bronze with a Tin finish
  • Insulation: Non-Insulated
  • Tab Width: 0.250 inches
  • Tab Thickness: 0.032 inches
  • Overall Length: 0.770 inches
  • Insulation Diameter: 0.150 to 0.200 inches
  • Mounting Type: Free-Hanging (In-Line)
