Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Texas Instruments
Series WiLink™
Package Tape & Reel
RF Family/Standard Bluetooth, WiFi
Protocol 802.11b/g/n, Bluetooth 4.2
Modulation CCK, DSSS, GFSK, OFDM
Frequency 2.4GHz
Data Rate 54Mbps
Power - Output 17.3dBm
Sensitivity -96.3dBm
Serial Interfaces SDIO, UART
Voltage - Supply 2.9V ~ 4.8V
Current - Receiving 49mA ~ 85mA
Current - Transmitting 238mA ~ 420mA
Mounting SMD (SMT)
Temperature Range - Operating -20°C ~ 70°C
Package / Case Module
Base Product Number WL1835
MSL Level 3 (168 Hours)
REACH Status REACH info available upon request
ECCN 5A992C
HTSUS 8517.62.0090
Other Names 296-37028-6,296-37028-2,296-37028-1,-296-37028-1-ND,TEXTISWL1835MODGBMOCT,2156-WL1835MODGBMOCT
Standard Package 250
Win Source Part Number 1231663-WL1835MODGBMOCT
Ultra Librarian 3D Model Ultra Librarian WL1835MODGBMOCT CAD Model

Description

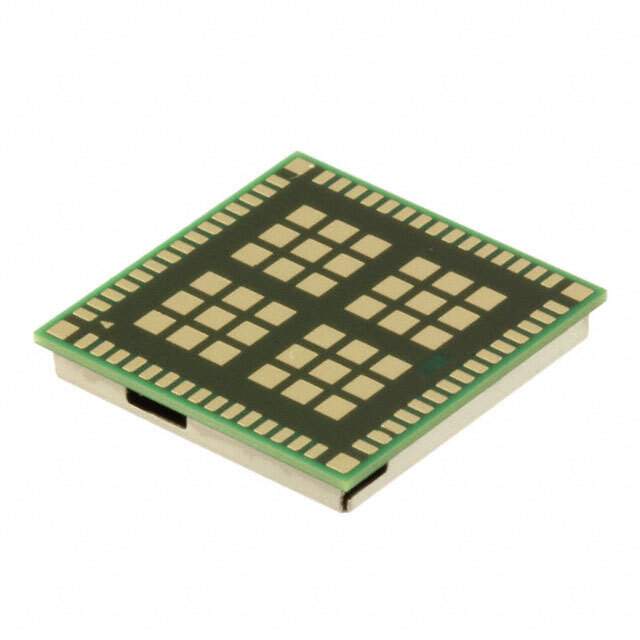

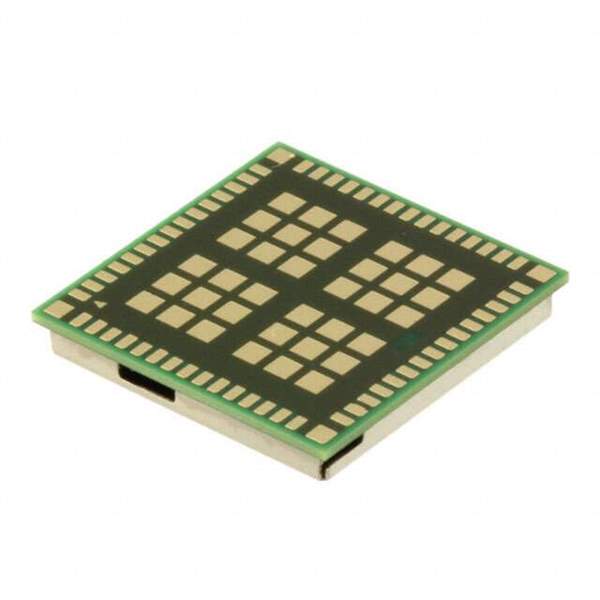

The WL1835MODGBMOCT is a highly integrated Wi-Fi (802.11 a/b/g/n) and Bluetooth (BT 4.0) module that provides a robust wireless solution suitable for a wide range of applications. Manufactured by Texas Instruments, this module is designed for high throughput and extended range applications, offering a versatile combination of cutting-edge wireless technologies in a compact form factor.

Key Features

  • Wi-Fi and Bluetooth Integration: The WL1835MODGBMOCT combines IEEE 802.11a/b/g/n Wi-Fi and Bluetooth 4.0 technologies, enabling dual-mode wireless communications with excellent data rates.
  • 2.4 GHz and 5 GHz Support: It operates in both the 2.4 GHz and 5 GHz ISM bands, providing flexibility for various wireless network configurations and better interference avoidance.
  • Advanced Security: With support for Wi-Fi security protocols such as WPA, WPA2, and enterprise-level security, the module ensures secure wireless connections.
  • Power Efficiency: Designed for low-power operation, the WL1835MODGBMOCT is ideal for battery-powered devices, with power-saving modes that extend battery life.
  • SmartConfig™ Technology: Texas Instruments' SmartConfig technology enables easy and flexible Wi-Fi provisioning for devices without displays or keyboards.
  • High Throughput: The module supports high-speed data transmission, making it suitable for multimedia applications that require high data rates.
  • Compact Size: Its small form factor enables integration into space-constrained devices, making it perfect for portable and IoT applications.

Applications

The WL1835MODGBMOCT module is ideal for a variety of applications that require wireless connectivity. These include:

  • Internet of Things (IoT) devices
  • Home and industrial automation
  • Wireless audio systems and speakers
  • Healthcare and medical equipment
  • Smartphones, tablets, and other portable electronics
  • Wearable technology

With its robust feature set, the WL1835MODGBMOCT from Texas Instruments is a powerful and flexible wireless module that can bring advanced connectivity to a wide range of electronic devices.
