Products specifications

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Microchip Technology
Package Tray
RF Family/Standard Bluetooth
Protocol Bluetooth v4.0 Dual Mode
Frequency 2.4GHz
Data Rate 50kbps
Power - Output 2dBm
Sensitivity -92dBm
Serial Interfaces UART
Antenna Type Antenna Not Included
Voltage - Supply 3.2V ~ 4.3V
Current - Receiving 70mA
Current - Transmitting 70mA
Mounting SMD (SMT)
Temperature Range - Operating -20°C ~ 70°C
Package / Case 30-SMD Module
Firmware Version 1.42
Base Product Number BM77
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.90.2100
Standard Package 136
Win Source Part Number 1049486-BM77SPP03MC2-0007AA
Ultra Librarian 3D Model Ultra Librarian BM77SPP03MC2-0007AA CAD Model

Description

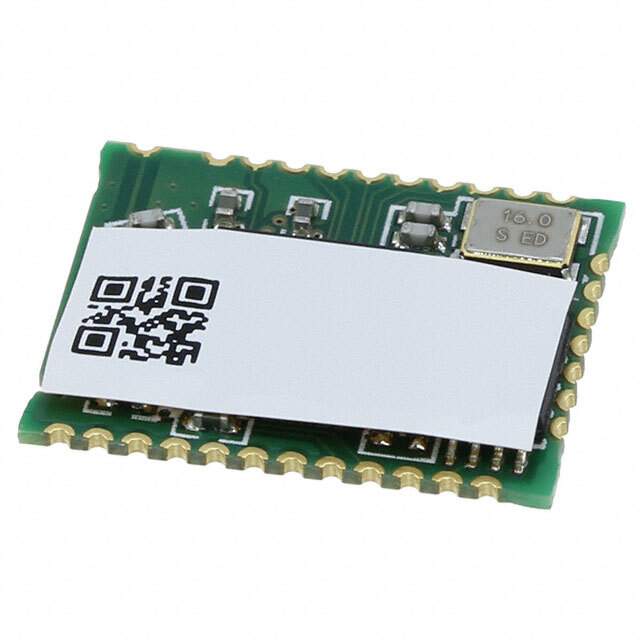

BM77SPP03MC2-0007AA - Bluetooth Module by Microchip Technology

The BM77SPP03MC2-0007AA is a fully-certified Bluetooth Version 4.2 module from the renowned manufacturer, Microchip Technology. This compact module is specifically designed to provide a high-performance wireless communication solution for a wide range of applications. Its small form factor and low power consumption make it an ideal choice for portable and battery-powered devices.

Featuring an onboard 2.4 GHz transceiver, the module provides an efficient way to integrate Bluetooth connectivity into your products without the need for extensive RF experience or certification. It supports Enhanced Data Rate (EDR) with speeds of up to 3 Mbps and is backward compatible with Bluetooth 2.1+EDR, 3.0+HS, and 4.0, ensuring connectivity with a broad range of Bluetooth-enabled devices.

The BM77SPP03MC2-0007AA module comes with an integrated antenna, reducing the need for external components and simplifying the design process. It also includes a host of features such as adaptive frequency hopping, low-energy secure connection, and on-chip data buffering, which enhance the reliability and security of the wireless communication.

With its UART interface, the module is easy to integrate into existing designs, offering a straightforward approach to upgrading products with Bluetooth capabilities. The module is also equipped with multiple I/O pins for greater flexibility in interfacing with other hardware components.

Microchip provides comprehensive support for the BM77SPP03MC2-0007AA, including detailed datasheets, application notes, and reference designs. This support, combined with the module's FCC, IC, CE, and Bluetooth SIG certifications, ensures a smooth development process and quick time-to-market for your Bluetooth-enabled products.

Whether you're developing consumer electronics, IoT devices, healthcare equipment, or wearable technology, the BM77SPP03MC2-0007AA Bluetooth module from Microchip Technology offers a reliable, cost-effective solution for adding wireless connectivity to your next project.
