Product Overview: Texas Instruments UCC28051DR

The UCC28051DR is a sophisticated power factor correction (PFC) controller from Texas Instruments, designed to enable efficient power supply solutions. This integrated circuit is tailored for use in pre-regulators for off-line power supplies, offering enhanced power factor and reduced total harmonic distortion. Its application domain is vast, ranging from home appliances to industrial systems, where power efficiency and reliability are paramount.

The UCC28051DR operates under the principle of transition mode (also known as critical conduction mode or CrM), which is highly efficient for systems that are typically in the range of 75W to several kilowatts. This mode of operation ensures that the inductor current reaches zero before the next switching cycle begins, thereby minimizing switching losses and maximizing efficiency.

One of the key features of the UCC28051DR is its ability to seamlessly adjust the switching frequency over a wide range, thanks to its programmable soft start and its enable input. This allows designers to fine-tune their power supply systems to achieve optimal performance. Furthermore, the device includes an innovative streak-limit feature that helps to prevent overvoltage conditions, enhancing the overall safety and reliability of the application.

The UCC28051DR also boasts a low startup current, which reduces the stress on the startup resistor and prolongs the life of the power supply. Additionally, the controller is equipped with an error amplifier and a 2.5V reference for precise output regulation, which is crucial in maintaining consistent power delivery.

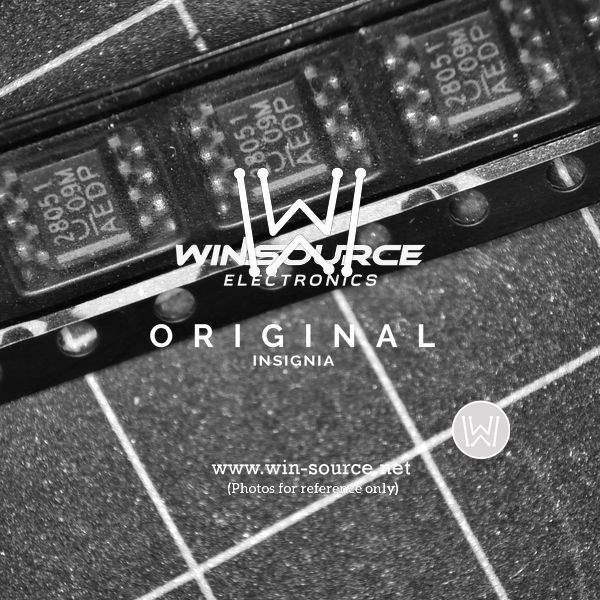

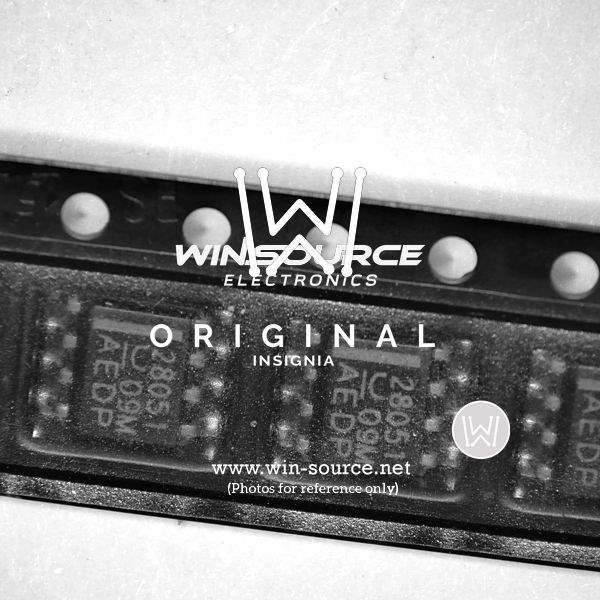

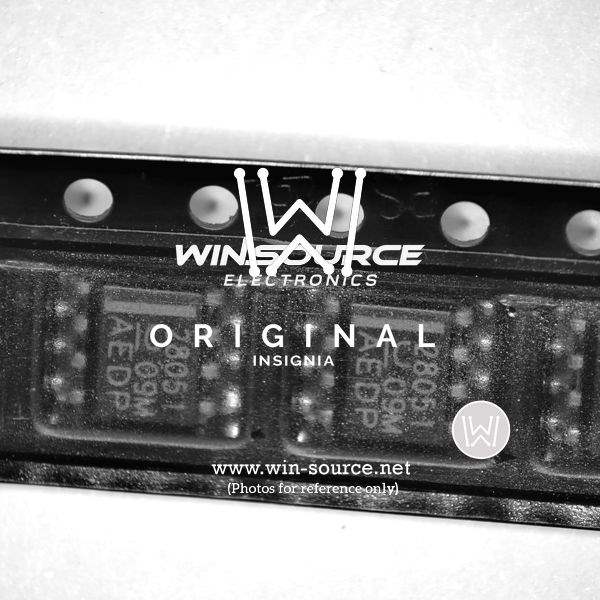

Encased in an 8-pin SOIC package, the UCC28051DR is not only powerful but also compact, making it an excellent choice for space-constrained applications. Its operating temperature range of -40°C to +105°C ensures that it can perform reliably in a variety of environmental conditions.

For designers looking to enhance the efficiency and performance of their AC/DC power supply solutions, the UCC28051DR from Texas Instruments presents a robust and adaptable PFC controller option that promises to meet the stringent demands of modern electronic applications.
