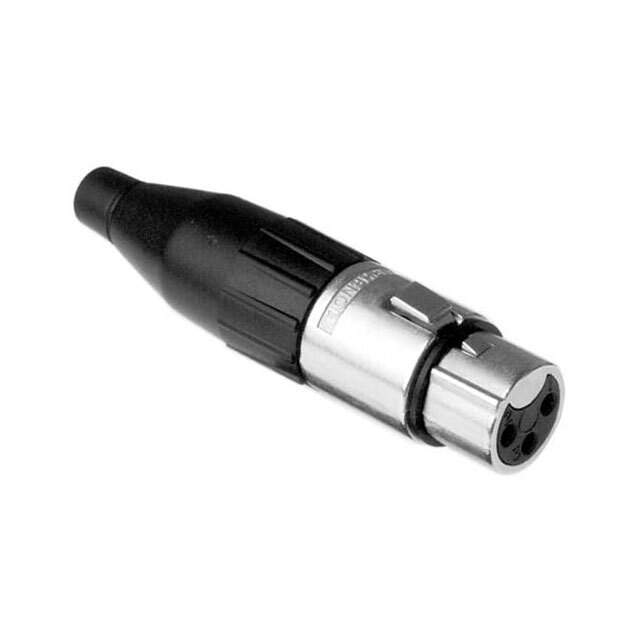

AC3F Real Image
Same model may have multiple batches, images only for reference.

AC3F

Part No AC3F
Manufacturer Amphenol
Catalog Circular Connectors
Description CONN PLUG FMALE XLR 3P SOLDER / 3 Position Circular Connector Plug, Female Sockets Solder Cup
Datasheet
AC3F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Amphenol Audio
Series AC
Package Bulk
Connector Type Plug, Female Sockets
Number of Positions 3
Shell Size - Insert XLR
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Latch Lock
Orientation Keyed
Primary Material Metal
Shell Material Zinc Die Cast
Shell Finish Nickel
Contact Finish - Mating Silver
Color Silver
Ingress Protection IP40
Features Backshell, Cable Clamp
Temperature Range - Operating -25°C ~ 75°C
Base Product Number AC3F
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4020
Other Names 889-1796
Standard Package 100
Win Source Part Number 1042487-AC3F
Ultra Librarian 3D Model Ultra Librarian AC3F CAD Model

Description

The AC3F is a circular connector from Amphenol Audio.

  • Connector Type: Plug
  • Gender: Female Sockets
  • Number of Positions: 3
  • Termination Style: Solder Cup
  • Fastening Type: Latch Lock
  • Shell Material: Zinc Die Cast
  • Shell Finish: Nickel
  • Keyed: Yes
  • Ingress Protection: IP40
  • Operating Temperature: -25°C to 75°C
  • Packaging: Bulk
  • Standard Package: 100
  • Mounting Type: Free Hanging (In-Line)
  • Shell Size: XLR
  • Contact Finish Mating: Silver
