The TXB0108DQSR is a cutting-edge, 8-bit bidirectional voltage-level translator from the renowned semiconductor manufacturer Texas Instruments. This device is designed to provide seamless voltage level translation between different logic levels, ranging from 1.2V to 3.6V on the A side (VCCA) and 1.65V to 5.5V on the B side (VCCB), making it an ideal choice for multi-voltage systems.

With its auto-direction sensing and non-preferential power-up sequencing, the TXB0108DQSR ensures a flexible and reliable interface between devices operating at disparate voltage levels. The translator's 8 I/O channels can be used in either direction without the need for a direction control signal, simplifying the design and reducing the overall system complexity.

One of the key features of this device is its edge-rate accelerators which significantly improve the data transfer rate by enabling the device to support higher signal drive strengths. This makes the TXB0108DQSR suitable for high-speed applications, where maintaining signal integrity is crucial. Furthermore, the built-in 4 kΩ pull-up resistors on the I/O lines help to maintain a high impedance when the translator is powered off or when the output is disabled, thereby preventing potential data corruption.

Key Features:

• 8-bit bidirectional voltage-level translation
• Operating VCCA Range: 1.2V to 3.6V
• Operating VCCB Range: 1.65V to 5.5V
• Auto-direction sensing
• No direction control signal needed
• Edge-rate accelerators for high-speed data transfer
• Built-in 4 kΩ pull-up resistors
• Low standby current

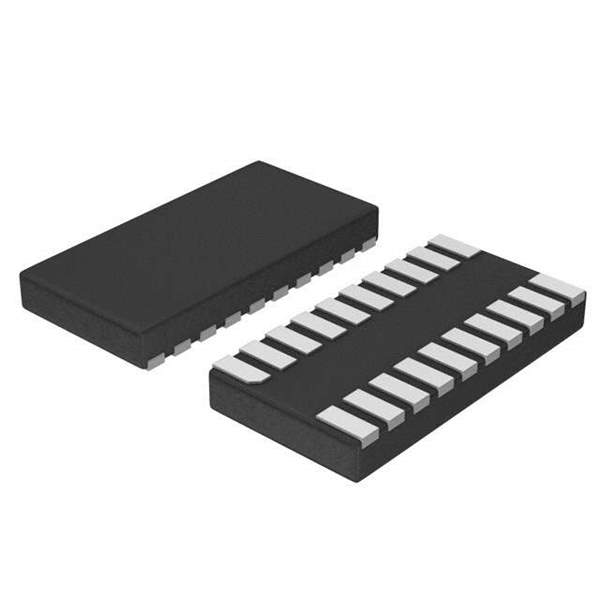

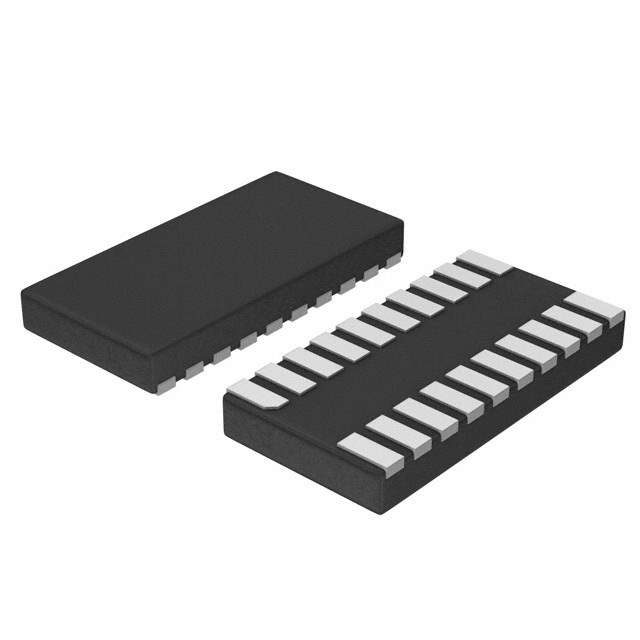

The TXB0108DQSR comes in a compact, surface-mount, 20-pin SSOP package, making it easy to integrate into various PCB designs. It is also characterized for operation from -40°C to 85°C, ensuring reliable performance across a wide range of environmental conditions. Whether you're designing consumer electronics, mobile devices, or industrial control systems, the TXB0108DQSR offers a robust and versatile solution for voltage-level translation needs.
