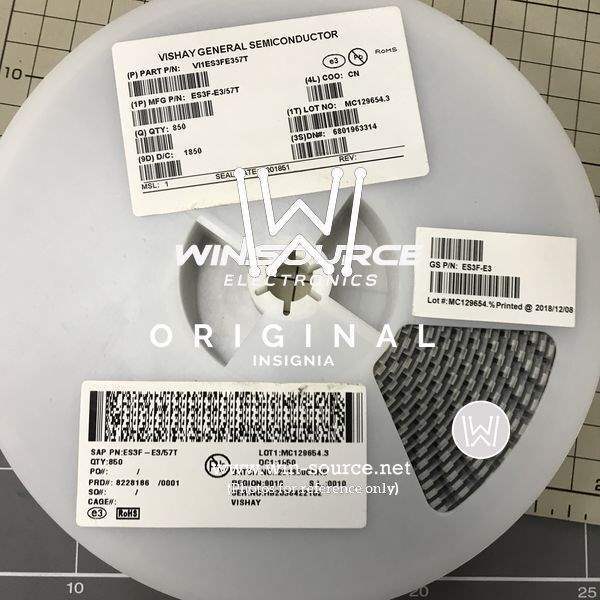

ES3F-E3/57T Real Image ES3F-E3/57T label picture
Same model may have multiple batches, images only for reference.
ES3F-E3/57T Real Image ES3F-E3/57T label picture
ES3F-E3/57T Real Image ES3F-E3/57T label picture
Same model may have multiple batches, images only for reference.

ES3F-E3/57T

Part No ES3F-E3/57T
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 300V 3A DO214AB
Datasheet
ES3F-E3/57T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 300V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 3A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 50ns
Current - Reverse Leakage @ Vr 10μA @ 300V
Capacitance @ Vr, F 30pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package DO-214AB, (SMC)
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 1037039-ES3F-E3/57T
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ES3F-E3/57T CAD Model

Description

The Vishay ES3F-E3/57T is a standard surface-mount diode.

  • Maximum DC Reverse Voltage: 300V
  • Average Rectified Current: 3A
  • Forward Voltage: 1.1V @ 3A
  • Reverse Recovery Time: 50ns
  • Packaging: reel
  • Mounting Technology: SMD (SMT)
  • Recovery Speed: fast recovery speed of 200mA (Io)
  • Popularity: medium
  • Operating Temperature Range: between -55°C to 150°C
  • Applications: discrete semiconductor products
