Products specifications

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tray
Resolution 12
Sampling Rate (Per Second) 40M
Number of Inputs 4
Input Type Differential
Data Interface LVDS - Serial
Configuration S/H-ADC
Number of A/D Converters 4
Architecture Pipelined
Reference Type External, Internal
Supply Voltage , Analog 3V ~ 3.6V
Supply Voltage , Digital 3V ~ 3.6V
Features Simultaneous Sampling
Temperature Range - Operating -40°C ~ 85°C

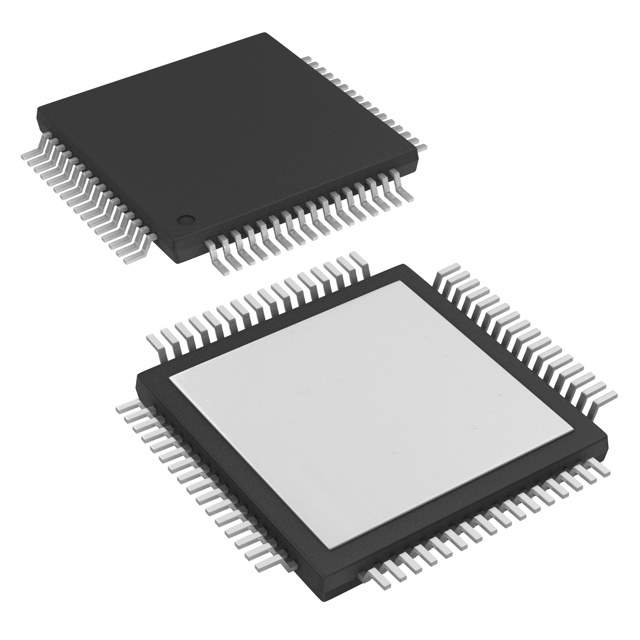

Manufacturer Package 64-TQFP Exposed Pad
Supplier Device Package 64-HTQFP
Mounting Style SMD
Family Part Number ADS5240
Manufacturer Pack Quantity 160
MSL Level 3 (168 Hours)
Win Source Part Number 1141714-ADS5240IPAP
Manufacturer Homepage www.ittcannon.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ADS5240IPAP CAD Model

Description

Introducing the ADS5240IPAP from Texas Instruments

The ADS5240IPAP is a high-performance, 10-bit analog-to-digital converter (ADC) designed by Texas Instruments, a leader in semiconductor solutions. This ADC is specifically engineered to deliver exceptional speed and accuracy for a wide range of applications, including medical imaging, test equipment, and communication systems.

At the heart of the ADS5240IPAP is its state-of-the-art architecture that allows for a sampling rate of up to 40 MSPS (million samples per second), ensuring that fast-moving signals are captured with high fidelity. The device's 10-bit resolution provides fine detail in signal representation, making it ideal for precision measurements and high-resolution data acquisition.

Key Features of the ADS5240IPAP

  • High-Speed Performance: With a 40 MSPS sampling rate, the ADS5240IPAP can handle fast analog signals, making it suitable for demanding applications that require quick data processing.
  • Excellent Dynamic Performance: The device boasts a Signal-to-Noise Ratio (SNR) of 57.6 dBFS and a Spurious-Free Dynamic Range (SFDR) of 70 dBc, ensuring clean and reliable signal conversion.
  • Low Power Consumption: Designed with power efficiency in mind, the ADS5240IPAP operates with a low power consumption of 445 mW at full speed, making it an energy-efficient choice for portable and battery-powered devices.
  • Flexible Interface: The ADC features a parallel LVDS (Low-Voltage Differential Signaling) output, which facilitates easy integration with digital signal processors (DSPs) and field-programmable gate arrays (FPGAs).
  • Compact Package: Housed in a 64-TQFP (Thin Quad Flat Pack) package, the ADS5240IPAP is compact and suitable for space-constrained applications.

The ADS5240IPAP also includes additional functionalities such as an internal voltage reference, an out-of-range indicator, and programmable gain options. These features provide designers with the flexibility to tailor the ADC to their specific needs, ensuring optimal performance in their end products.

Overall, the Texas Instruments ADS5240IPAP is a robust and reliable choice for designers looking to enhance the performance and precision of their digital data acquisition systems. Its combination of high-speed operation, precise conversion, and low power consumption makes it a standout ADC in the market.
