Products specifications

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 34 Weeks
Features USB, UART Switch IC Channel 12-DSBGA
Manufacturer Texas Instruments
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Package 12-XFBGA, DSBGA
Case / Package 12-DSBGA
Family Name TS5USBC402
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 296-52164-2, TS5USBC402IYFPR-ND, 296-52164-1, 296-52164-6
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 901225-TS5USBC402IYFPR
Ultra Librarian 3D Model Ultra Librarian TS5USBC402IYFPR CAD Model

Description

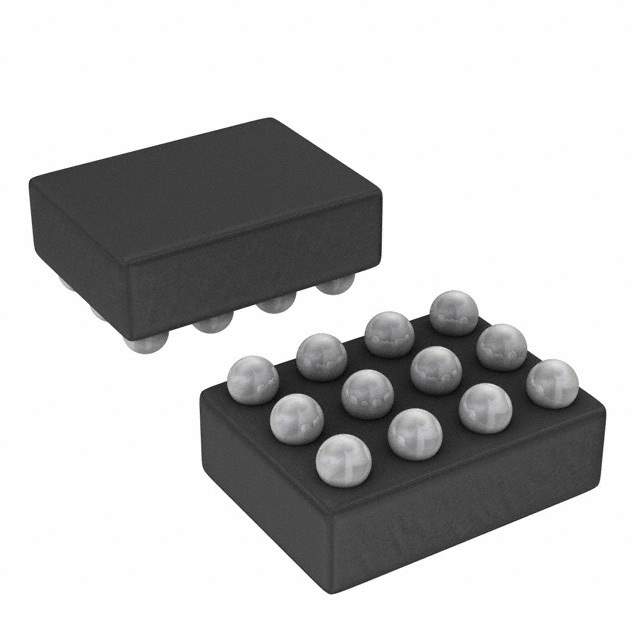

Introducing the TS5USBC402IYFPR USB Type-C Switch from Texas Instruments

The TS5USBC402IYFPR is a cutting-edge USB Type-C switch designed by Texas Instruments to facilitate the seamless and efficient switching of high-speed USB 3.1 Gen 1 and Gen 2 signals. This advanced integrated circuit is engineered to address the needs of modern devices that require robust and flexible connectivity solutions.

With the rapid advancement in USB technology, the TS5USBC402IYFPR stands out as a versatile component that can handle data rates up to 10 Gbps, making it an ideal choice for applications such as smartphones, tablets, laptops, and other consumer electronics that demand high-speed data transfer capabilities. Its dual-channel configuration allows for the switching of two differential signal pairs, which is essential for USB 3.1 Gen 2 data paths.

The device is housed in a compact, space-saving 14-pin X2QFN package, measuring just 2.0 mm x 2.0 mm x 0.65 mm, which makes it perfect for space-constrained applications. The small form factor also helps in maintaining the sleek design of modern electronic devices without compromising on performance.

One of the key features of the TS5USBC402IYFPR is its support for alternate modes, which permits the switch to be used for non-USB signals such as DisplayPort and Thunderbolt, providing additional versatility. This feature is particularly important for devices that require the use of multiple protocols over a single USB Type-C connector.

Moreover, the TS5USBC402IYFPR is designed with an emphasis on reliability and durability. It includes ESD protection on all pins to safeguard against electrostatic discharges, ensuring a longer lifespan for the devices it is used in. Additionally, it operates over a wide temperature range, making it suitable for use in various environments.

Overall, the TS5USBC402IYFPR from Texas Instruments is a highly capable and reliable solution for designers looking to incorporate USB Type-C connectivity into their products. With its high-speed data transfer capabilities, support for multiple protocols, and robust design, it is set to be a key component in the next generation of electronic devices.
