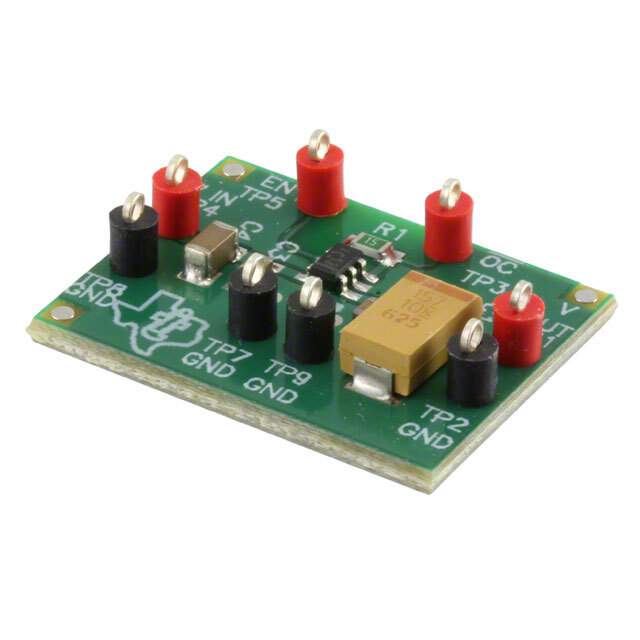

The TPS2051BEVM is an evaluation module designed by Texas Instruments to help developers and engineers test the functionality and performance of the TPS2051B single-channel, current-limited, power-distribution switch. This device is intended for applications where heavy capacitive loads and short circuits are likely to be encountered, providing a reliable solution for USB and other hot-swap applications.

Key Features of TPS2051BEVM

• Single Channel: The TPS2051B device features a single power-distribution channel, which is capable of delivering up to 500mA of continuous current.
• Current Limiting: Integrated current limiting protects the device from damage caused by overcurrent conditions, enhancing system reliability.
• Thermal Shutdown: The evaluation module includes thermal shutdown protection, which prevents overheating and potential damage to the device and connected components.
• Reverse Voltage Protection: The TPS2051B is equipped with reverse voltage protection to safeguard against incorrect power supply connections.
• Transient Voltage Suppression: The board comes with built-in transient voltage suppression to protect against voltage spikes in the system.
• User-Friendly Interface: The evaluation module is designed with ease of use in mind, featuring test points and jumper settings for convenient experimentation and functionality verification.

Applications

The TPS2051BEVM is suitable for a wide range of applications, including:

• USB-powered devices and hubs
• Portable consumer electronics
• Hot-swap power supplies
• Peripheral power management

Getting Started with TPS2051BEVM

To begin using the TPS2051BEVM, simply connect the evaluation module to a power source and a load. The onboard LED indicators provide immediate feedback on the device's status, including power-good and fault conditions. For detailed analysis, the evaluation module's test points can be used to monitor voltage and current parameters.

With the TPS2051BEVM, engineers can quickly and efficiently validate the TPS2051B switch's performance, ensuring that their designs meet the stringent requirements of power distribution in modern electronic systems.
