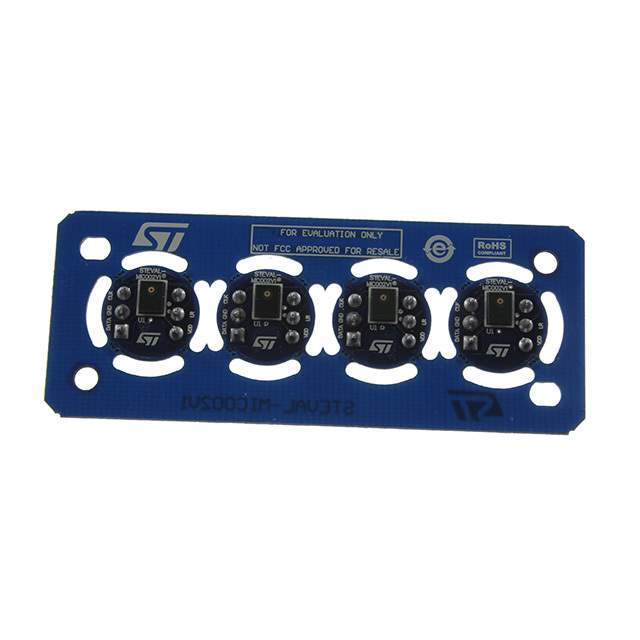

STEVAL-MIC002V1 Digital MEMS Microphone Evaluation Board

The STEVAL-MIC002V1 from STMicroelectronics is a sophisticated evaluation board designed for testing the capabilities of digital MEMS (Micro-Electro-Mechanical Systems) microphones. This compact and versatile board is an ideal solution for a variety of applications that require high-quality audio input, such as smart home devices, wearable technology, and advanced audio systems.

At the heart of the STEVAL-MIC002V1 lies the MP34DT01-M digital MEMS microphone, which captures sound with impressive clarity and precision. The microphone is characterized by its high Signal-to-Noise Ratio (SNR) and extended frequency response, ensuring that audio is captured with minimal distortion and a wide dynamic range.

The evaluation board is equipped with an STM32F4 series microcontroller, which provides the necessary processing power to handle the digital audio stream from the microphone. The board also features a dedicated audio processing software stack, which allows for real-time audio streaming and analysis. This makes it an excellent tool for developing and testing advanced audio processing algorithms.

Connectivity on the STEVAL-MIC002V1 is facilitated through a USB interface, which provides both power and data transfer capabilities. This ensures that the board can be easily connected to a PC for configuration and data acquisition. Additionally, the board supports I2S (Inter-IC Sound) and DFSDM (Digital Filter for Sigma-Delta Modulators) interfaces, offering flexibility for integration with other audio components or systems.

The STEVAL-MIC002V1 comes with comprehensive documentation and software support, including demonstration firmware and a user-friendly graphical interface. This ensures that developers can quickly begin experimenting with the board and integrating it into their projects without a steep learning curve.

Overall, the STEVAL-MIC002V1 evaluation board is an invaluable tool for engineers, designers, and audio enthusiasts who are looking to explore the potential of digital MEMS microphones in their applications. With its high-performance microphone, powerful microcontroller, and versatile connectivity options, the STEVAL-MIC002V1 is well-suited for a wide range of audio applications.
