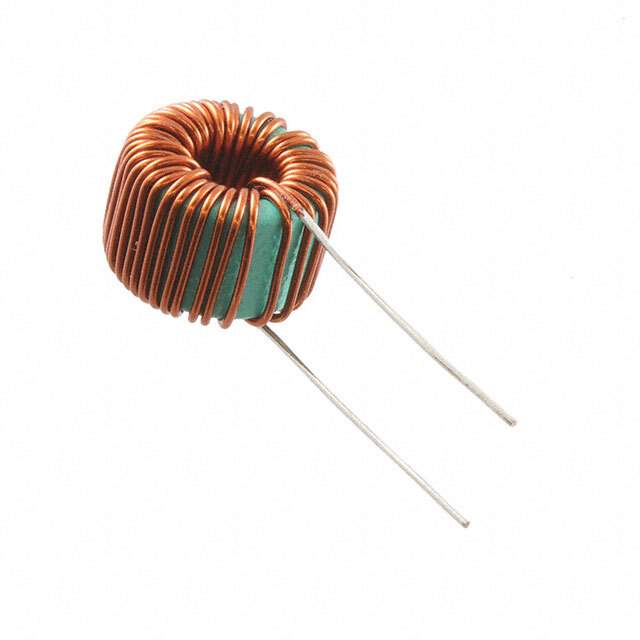

SN8D-400 Real Image
Same model may have multiple batches, images only for reference.

SN8D-400

Part No SN8D-400
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SN8D-400 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SN
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 80 µH @ 100 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 72mOhm
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.630" Dia x 0.433" W (16.00mm x 11.00mm)
Height (Max) 0.689" (17.50mm)
Package / Case Vertical, No Base, 2 PC Pin
Base Product Number SN8D
Other Names 399-20554,UALSN8D4000000
Standard Package 1,800
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276821-SN8D-400
Ultra Librarian 3D Model Ultra Librarian SN8D-400 CAD Model

Description

The KEMET SN series common mode choke is a power line filter that is designed to provide noise suppression for electronic devices.

  • Current Rating: 2A
  • Mounting Type: Through-hole
  • Package: Vertical 2 PC pin
  • Maximum Height: 0.689 inches (17.50mm)
