The SN65LVCP1412RLHR, crafted by the renowned semiconductor manufacturer Texas Instruments, is a high-performance, low-voltage differential signaling (LVDS) repeater designed to manage high-speed data transmission with exceptional signal integrity. This device is part of TI's interface family and is widely used in applications that require the transfer of fast serial data streams over printed circuit boards or cable interconnects.

Key Features

• High-Speed Data Transmission: The SN65LVCP1412RLHR facilitates data rates up to 3.4 Gbps, making it ideal for high-speed data applications, including backplane interconnects and high-resolution video interfaces.
• Low Power Consumption: Designed with energy efficiency in mind, this repeater operates with a minimal power draw, contributing to overall system power savings.
• Signal Conditioning: It includes signal conditioning features such as input equalization and output de-emphasis, which compensates for inter-symbol interference (ISI) and extends the reach of high-speed signals over long distances.
• Hot-Plug Capability: The device supports hot-plugging, allowing for the connection and disconnection of components without the need to power down the system.

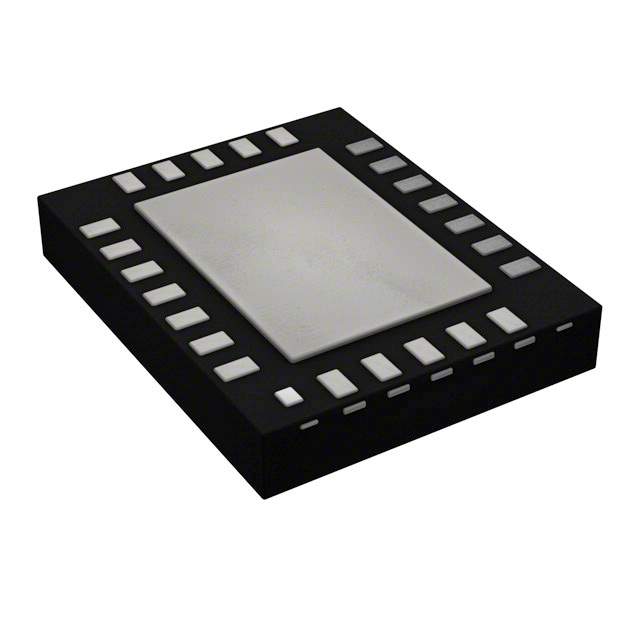

• Small Form Factor: The SN65LVCP1412RLHR is available in a compact QFN package, which is conducive to space-constrained applications.

Applications

The versatility of the SN65LVCP1412RLHR makes it suitable for a wide array of applications, including but not limited to:

• High-speed data communication in computing and networking equipment
• Signal repeater for high-resolution video displays and digital signage
• Backplane interconnects for servers and storage systems
• Industrial control systems requiring robust data transmission

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the SN65LVCP1412RLHR is built to meet the stringent requirements of the industrial market. It is designed to withstand harsh environments and maintain its performance over a wide temperature range. With Texas Instruments' reputation for reliability, this product is an excellent choice for designers looking to incorporate a durable and high-performing LVDS repeater into their systems.
