The PI2EQX4401DZFEX is a high-performance, low-power signal conditioning ReDriver designed by Diodes Incorporated, aimed at enhancing signal quality in high-speed interfaces. This advanced IC is an ideal solution for applications that demand improved signal integrity over extended cable or PCB traces in various computing, consumer electronics, and networking devices.

Key Features:

• Interface Support: The device is engineered to support high-speed interfaces such as USB 3.1 Gen1, providing a data rate of up to 5Gbps. It ensures that data integrity is maintained even over long distances, making it an essential component for modern high-speed data communication.
• Programmable Equalization: With programmable equalization settings, the PI2EQX4401DZFEX allows for fine-tuning of signal characteristics to compensate for different levels of signal loss due to various physical mediums.
• Low Power Consumption: The device is designed with power efficiency in mind, consuming minimal power and thereby contributing to the overall energy efficiency of the system it is integrated into.

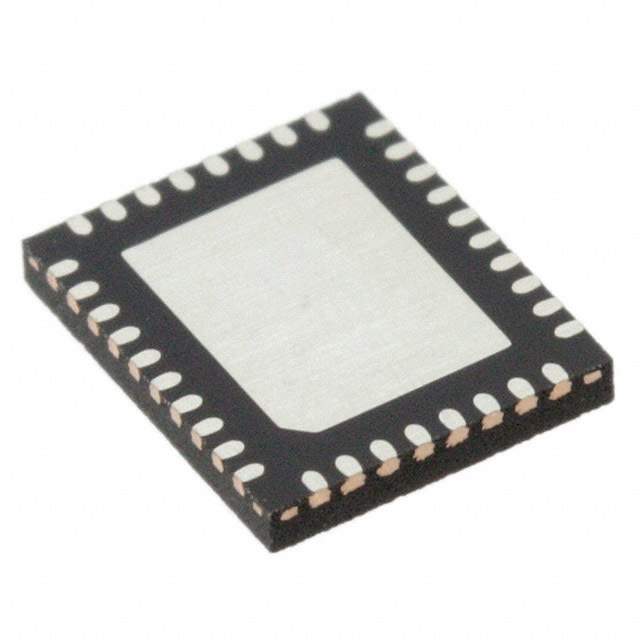

• Small Footprint: Housed in a compact, surface-mountable package, the PI2EQX4401DZFEX saves valuable board space and is suitable for use in space-constrained applications.
• Integrated Termination: It features integrated termination resistors that simplify PCB design and reduce external component requirements, leading to a reduction in design complexity and overall cost.
• Temperature Range: The device operates over an industrial temperature range, making it reliable in a variety of environments and applications.

Applications:

The PI2EQX4401DZFEX ReDriver is versatile and can be used in a wide range of applications, including:

• Desktop and Laptop Computers
• Docking Stations
• Server and Storage Systems
• Consumer Electronics such as TVs and Set-Top Boxes
• Data Center Infrastructure

In conclusion, the PI2EQX4401DZFEX from Diodes Incorporated is a robust signal conditioning solution that provides a significant advantage in maintaining signal integrity for high-speed data transfer. Its integration into systems requiring high data rates and extended cable lengths ensures reliable performance and user satisfaction.
