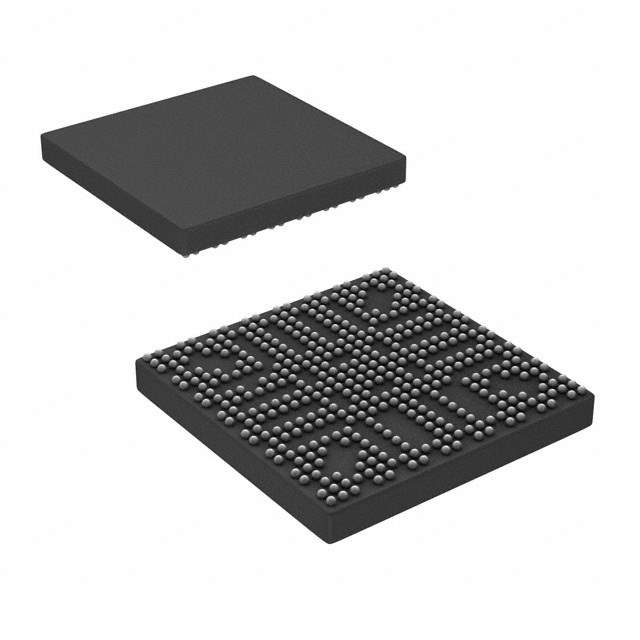

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tray
Status Obsolete(EOL)
Core Processor ARM Cortex-A8
Number of Cores/Bus Width 1 Core, 32-Bit
Speed(Frequency) 600MHz
Co-Processors/DSP Multimedia; NEON SIMD
RAM Controllers LPDDR
Graphics Acceleration No
Display & Interface Controllers LCD
USB USB 1.x (3), USB 2.0 (1)
Voltage - I/O 1.8V, 3.0V
Temperature Range - Operating 0°C to 90°C (TJ)
Security Package / Case 423-LFBGA, FCBGA
Case / Package 423-FCBGA (16x16)
Additional Interfaces HDQ/1-Wire, I2C, McBSP, McSPI, MMC/SD/SDIO, UART
Win Source Part Number 135479-OMAP3503DCUS
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian OMAP3503DCUS CAD Model

Description

The OMAP3503DCUS is a high-performance, advanced product from Texas Instruments, a renowned global semiconductor company.

  • Product Family: TI's OMAP family
  • Core: ARM Cortex-A8.
  • Core Speed: Up to 600 MHz.
  • DSP Core: TMS320C64x+.
  • Interfaces: USB 2.0, MMC/SD/SDIO, UART, SPI, and I2C.
  • Peripherals: 10/100 Ethernet MAC, high-speed USB 2.0 OTG port, and high-resolution LCD controller.
  • Quality and Reliability: High standards of performance and durability.
