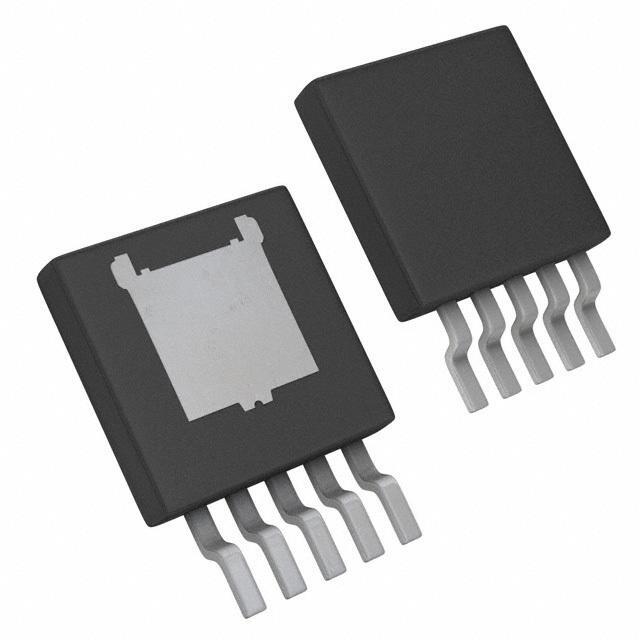

LP38502TJ-ADJEV

Part No LP38502TJ-ADJEV
Manufacturer Texas Instruments
Catalog Evaluation Boards - Linear Voltage Regulators
Description BOARD EVAL FOR LP38502 ADJ VOLT / LP38502 Linear Regulator 2.5VDC Output Evaluation Board
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Texas Instruments
Series FlexCap
Channels per IC 1 - Single
Voltage - Output 2.5V
Output Current 1.5A
Voltage - Input 2.7 V ~ 5.5 V
Regulator Type Positive Adjustable
Operating Temperature Range -40°C ~ 125°C
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part LP38502
Win Source Part Number 779724-LP38502TJ-ADJEV
Popularity Medium
Supply and Demand Status Balance
Family Name LP38502
Introduction Date April 24, 2013
ECCN EAR99
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LP38502TJ-ADJEV CAD Model

Description

The LP38502TJ-ADJEV is a robust, high-performance low-dropout regulator (LDO) designed by Texas Instruments (TI), tailored for a wide range of applications requiring stable and reliable power supply. This evaluation module is part of TI's extensive portfolio of voltage regulation devices, showcasing the capabilities of the LP38502 LDO in a convenient and user-friendly format.

Key Features

  • Output Voltage: The LP38502TJ-ADJEV provides an adjustable output voltage range, giving designers the flexibility to set the desired voltage level for their specific application needs.
  • High Current Capability: With the ability to deliver up to 1.5A of continuous output current, this LDO can power a broad spectrum of components, from sensitive RF circuits to digital processors.
  • Low Dropout: The low dropout feature ensures efficient operation even when the input voltage is close to the output voltage, minimizing power loss and improving overall system efficiency.
  • Thermal Protection: The device includes thermal shutdown protection, safeguarding the regulator and the system from damage due to excessive heat.
  • Stability: Designed with stability in mind, the LP38502TJ-ADJEV maintains a stable output even with varying load conditions and transient responses.

Applications

The LP38502TJ-ADJEV is suitable for a variety of applications, including but not limited to:

  • Networking equipment such as routers and switches
  • Consumer electronics including set-top boxes and gaming consoles
  • Automotive infotainment and telematics systems
  • Industrial and automation control systems
  • Telecommunication infrastructure

Design and Development Support

Texas Instruments provides comprehensive support for the LP38502TJ-ADJEV, including detailed datasheets, application notes, and design tools. Engineers and designers can take advantage of TI's online resources and customer support to streamline the development process and bring their products to market faster.
