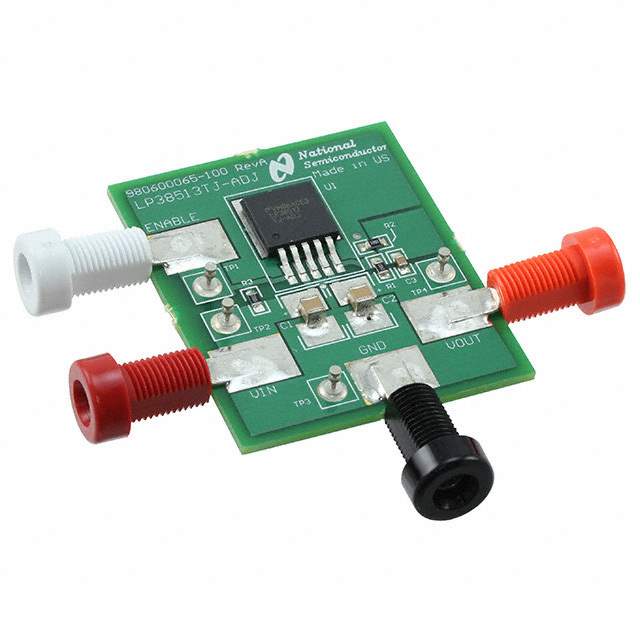

The LP38513TJ-ADJEV from Texas Instruments is a highly efficient, low-dropout (LDO) voltage regulator designed to provide precision, variable output from an input voltage source. This particular model is a part of Texas Instruments' extensive range of power management integrated circuits, which are renowned for their reliability and performance.

Key Features

• Adjustable Output Voltage: The LP38513TJ-ADJEV offers an adjustable output voltage range, which allows for a high degree of flexibility in various applications. This feature is particularly useful for designers who require a specific voltage level for their circuit.
• High Output Current: This device is capable of delivering up to 3A of continuous output current, making it suitable for powering a wide range of components, from microcontrollers to peripheral devices.
• Low Dropout: The low dropout characteristic of the LP38513TJ-ADJEV means that it can regulate output voltage effectively even when the supply voltage is very close to the output voltage, enhancing the efficiency of the overall system.
• Thermal Protection: The built-in thermal shutdown feature ensures the device operates within safe temperature limits, protecting both the regulator and the system from damage due to overheating.
• Stable with Low ESR Output Capacitors: The regulator is stable with ceramic and other low ESR capacitors, which reduces the size and cost of the external components required.

Applications

The versatility of the LP38513TJ-ADJEV makes it an ideal choice for a variety of applications, including:

• Point-of-load power supplies
• Post-regulation for switching supplies
• Consumer electronics
• Telecommunication infrastructure
• Industrial and automotive systems

Quality and Support

Texas Instruments is committed to providing high-quality products and support. The LP38513TJ-ADJEV is backed by Texas Instruments' rigorous testing and reliability standards, ensuring that it meets the stringent requirements of the most demanding applications. Comprehensive technical documentation, design resources, and expert support are available to assist in the integration and use of this voltage regulator in your product designs.
