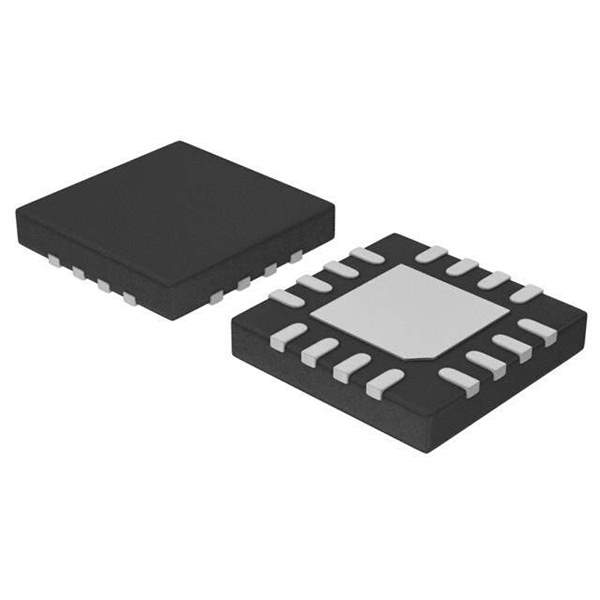

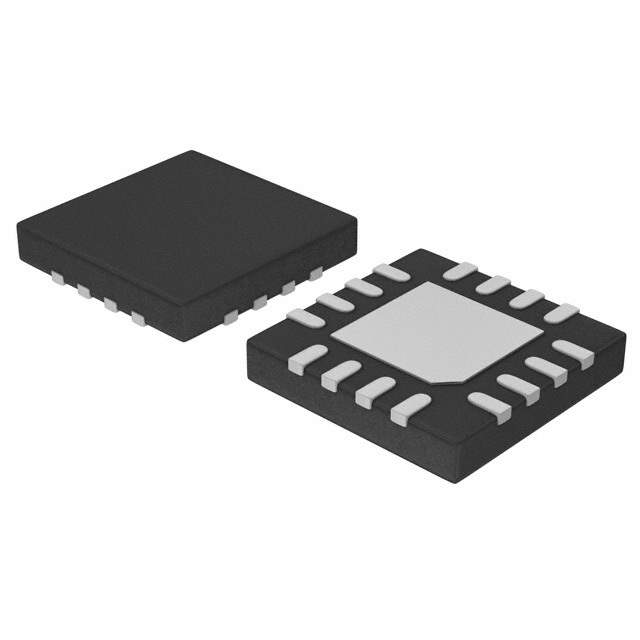

The LMH0044SQ is a high-performance, adaptive cable equalizer designed by Texas Instruments to facilitate the transmission of high-definition video signals over long lengths of coaxial cable. This advanced integrated circuit is part of TI's extensive line of broadcast video products, engineered to meet the rigorous demands of professional video applications.

Key Features

• High Data Rates: The LMH0044SQ supports data rates up to 2.97 Gbps, making it suitable for a variety of video formats, including SD-SDI, HD-SDI, and 3G-SDI.
• Adaptive Equalization: It features an adaptive equalizer that compensates for the signal loss inherent in long cable runs, ensuring the integrity of the video signal over distances up to 150 meters for HD-SDI signals.
• Low Power Consumption: The device operates with a low power consumption, which is critical for reducing heat and improving reliability in equipment racks and other densely packed installations.
• Compact Packaging: Offered in a space-saving 16-pin WQFN package, the LMH0044SQ is designed for easy integration into a variety of video equipment, including cameras, switchers, and routers.

Applications

• Professional Video Cameras
• Digital Video Routers and Switchers
• Video Editing and Post-Production Equipment
• Video Distribution Amplifiers

Technical Specifications

The LMH0044SQ operates over a single 3.3V supply and provides two selectable output amplitudes. It also features an output driver with a programmable de-emphasis function to help compensate for the frequency-dependent losses of long cable runs. The device's integrated cable driver delivers excellent signal integrity, which is essential for maintaining the quality of high-definition video signals.

Conclusion

With its advanced features and capabilities, the LMH0044SQ from Texas Instruments is an ideal solution for professionals seeking to transmit high-definition video signals over long distances without compromising on quality. Its combination of adaptive equalization, low power consumption, and compact form factor makes it a versatile and reliable choice for a wide range of broadcast video applications.
