Same model may have multiple batches, images only for reference.

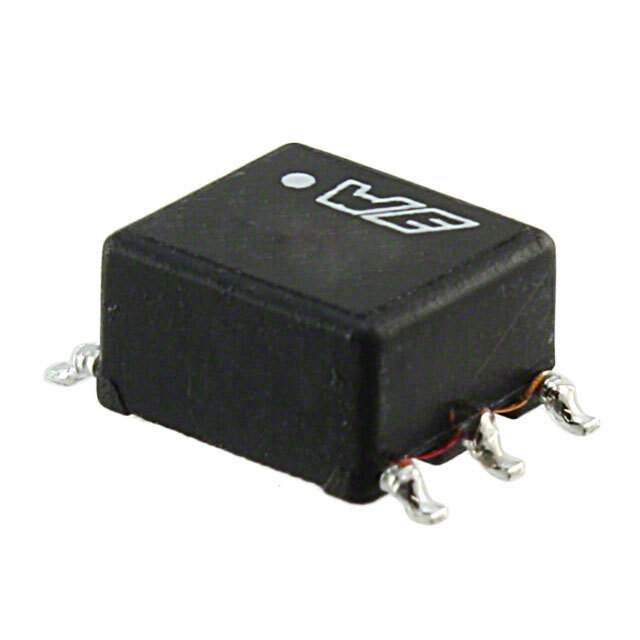

760390014 Real Image
Same model may have multiple batches, images only for reference.

760390014

Part No 760390014
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description TRANSFORMER | TRANSFORMER 475UH SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Wurth Electronics Midcom
Packaging Reel
Type For DC/DC Converters
Applications Forward, Push-Pull Converters
Intended Chipset SN6501
Chipset Manufacturer Texas Instruments
Voltage - Isolation 3125Vrms
Inductance at Frequency 475μH at 10kHz
Frequency 10kHz
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Parts Dimension 0.265" L x 0.281" W (6.73mm x 7.14mm)
Height - Seated (Maximum) 0.170" (4.32mm)
Footprint 0.265" L x 0.395" W (6.73mm x 10.05mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1133643-760390014
Manufacturer Homepage www.we-online.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 760390014 CAD Model

Description

The 1133643-760390014 is a transformer manufactured by Wurth Electronics Midcom.

  • Manufacturer: Wurth Electronics Midcom
  • Type: Transformer
  • Application: Forward and push-pull converters
  • Frequency: 10kHz
  • Voltage Isolation: 3125Vrms
  • Supply and Demand Status: Limited
  • Performance: High-performance device
  • Versatility: Can be used in both industrial and consumer applications
