Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Internal Switch(s) Yes
Number of Outputs 4
Voltage - Supply (Minimum) 2.8V
Voltage - Supply (Maximum) 5.5V
Voltage - Output 2.5V ~ 3.9V
Current - Output / Channel 30mA
Frequency 750kHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD

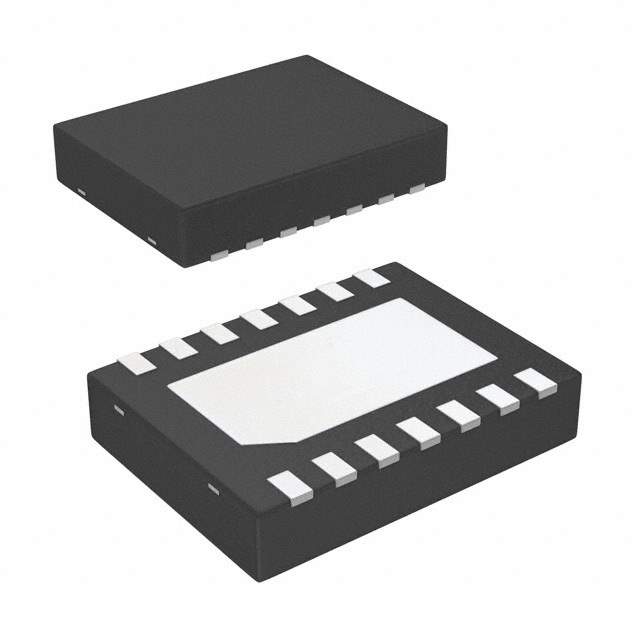

Manufacturer Package 14-WFDFN Exposed Pad
Supplier Device Package 14-WSON (4x3)
Family Part Number LM27951
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1198019-LM27951SD
Manufacturer Homepage www.ti.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name LM27951SD
Introduction Date November 01, 2005
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LM27951SD CAD Model

Description

The LM27951SD from Texas Instruments is a versatile and efficient solution for driving white LEDs in a dual-display configuration. This high-performance LED driver is designed to cater to the demands of portable devices that require backlighting for both main and sub-displays, such as mobile phones, PDAs, and other handheld devices.

Key Features

  • Adaptive 3/2x Mode Charge Pump: The device includes an adaptive 1x/1.5x/2x charge pump for power efficiency, which optimizes the performance based on the LED forward voltage requirements, thus conserving battery life.
  • Independent LED Control: It can independently drive up to six white LEDs in the main display and two white LEDs in the sub-display, providing flexibility in controlling brightness levels for different display sections.
  • Dimming Capability: The LM27951SD offers a 32-step exponential dimming control for each display, enabling precise control over brightness and enhancing user experience.
  • Low Dropout Mode: The low dropout mode ensures consistent light output even when the input voltage is close to the LED forward voltage, maintaining stable display illumination under varying battery conditions.
  • Extended Battery Life: Its high efficiency and low operating current contribute to extended battery life, making it an ideal choice for portable applications.
  • Small Footprint: The compact design of the LM27951SD, available in a 14-bump thin micro SMD package, allows for integration into space-constrained applications without compromising performance.

Applications

The LM27951SD is suitable for a wide range of applications that require dual-display backlighting. Its primary applications include:

  • Mobile Phones
  • Personal Digital Assistants (PDAs)
  • Portable Media Players
  • Handheld Devices

Conclusion

In conclusion, the LM27951SD from Texas Instruments is a highly efficient, dual-display LED driver that offers excellent performance and flexibility for portable device manufacturers. With its adaptive charge pump technology, independent display control, and compact size, it stands out as a smart choice for designers looking to enhance the visual experience of their products while maintaining power efficiency.
