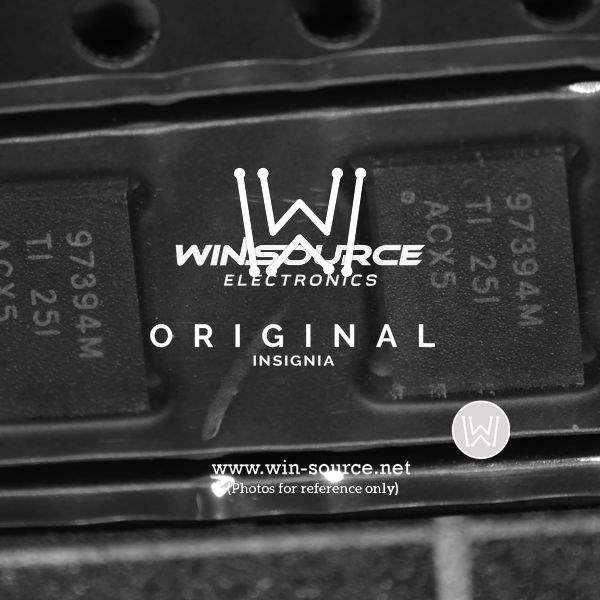

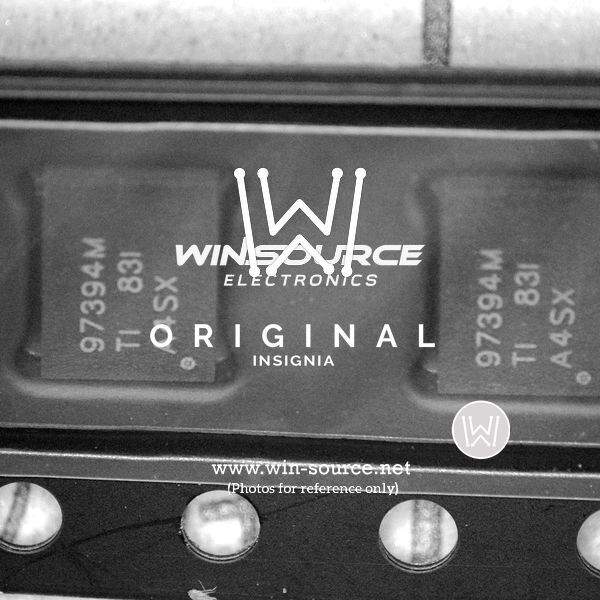

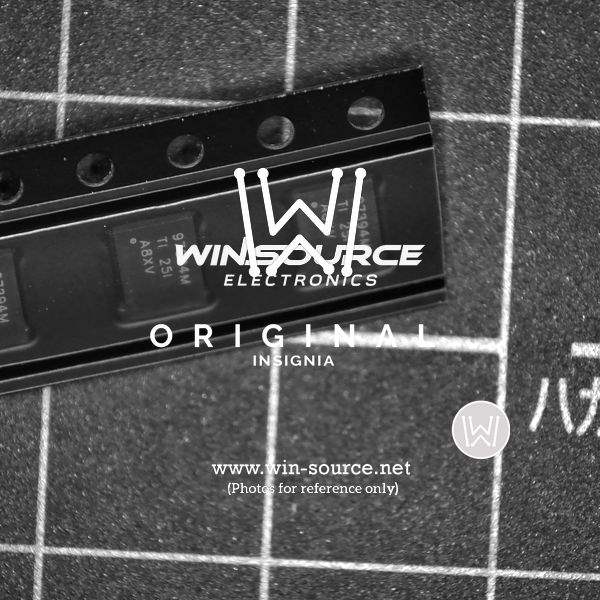

CSD97394Q4M

Part No CSD97394Q4M
Manufacturer Texas Instruments
Catalog PMIC - Full, Half - Bridge Drivers
Description IC HALF BRIDGE DRIVER 20A 8VSON
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Full Half-Bridge Drivers
Mfr Texas Instruments
Series NexFET™
Package Tape & Reel
Product Status Active
Output Configuration Half Bridge
Applications Synchronous Buck Converters
Interface PWM
Load Type Inductive
Technology Power MOSFET
Current - Output / Channel 20A
Current - Peak Output 45A
Voltage - Supply 4.5V ~ 5.5V
Voltage - Load 4.5V ~ 24V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Features Bootstrap Circuit
Fault Protection Shoot-Through, UVLO
Mounting Type Surface Mount
Package / Case 8-PowerVFDFN
Supplier Device Package 8-VSON (3.5x4.5)
Base Product Number CSD97394
Standard Package 2,500 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 580878-CSD97394Q4M
Ultra Librarian 3D Model Ultra Librarian CSD97394Q4M CAD Model

Description

The CSD97394Q4M is a state-of-the-art power stage module from Texas Instruments, designed to deliver exceptional performance in power conversion applications. This compact and efficient module integrates a driver IC along with two power MOSFETs, providing a complete switching solution that simplifies design and enhances system reliability.

Key Features

  • Integrated Power Solution: Combining high-side and low-side MOSFETs with a driver IC, the CSD97394Q4M offers a highly integrated power stage that reduces component count and PCB footprint.
  • High-Efficiency: With its advanced NexFET™ technology, the module achieves high efficiency, which is crucial for reducing heat and improving system performance in applications such as servers, telecom, and networking equipment.
  • Optimized Switching: The driver IC within the module is optimized for the MOSFETs, ensuring fast switching speeds and reduced dead time, which further enhances efficiency and performance.
  • Thermal Management: The CSD97394Q4M is designed with excellent thermal performance in mind, featuring a low inductance package that helps to minimize losses and improve heat dissipation.
  • Robust Protection Features: The module includes a range of built-in protection features such as over-current, over-temperature, and under-voltage lockout, safeguarding the system against various fault conditions.

Applications

  • Multi-phase DC/DC converters
  • Computing and server power supplies
  • Telecommunications equipment
  • Networking hardware
  • High-density power systems

Technical Specifications

Parameter Value
Input Voltage Range 4.5V to 18V
Output Current Up to 60A
Switching Frequency 300kHz to 1MHz
Operating Temperature -40°C to 125°C
Package Type QFN

With its superior integration, performance, and protection, the CSD97394Q4M from Texas Instruments is an excellent choice for designers looking to enhance power density and efficiency in their next-generation power systems.
