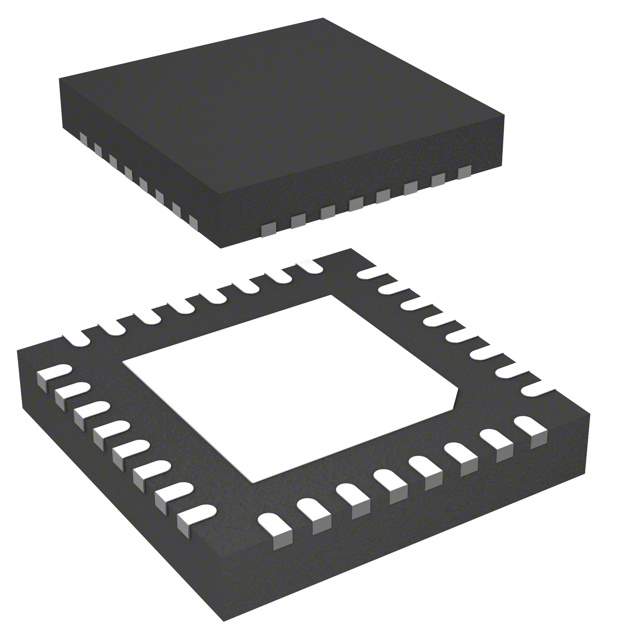

AP1025BEN Real Image
Same model may have multiple batches, images only for reference.

AP1025BEN

Part No AP1025BEN
Manufacturer Asahi Kasei Microsystems
Catalog PMIC - Full, Half - Bridge Drivers
Description IC HALF BRIDGE DRIVER 1.6A 32QFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Full Half-Bridge Drivers
Mfr Asahi Kasei Microdevices/AKM
Series -
Package Tape & Reel
Product Status Obsolete
Output Configuration Half Bridge (4)
Applications General Purpose, Stepper Motors
Interface Logic
Load Type Inductive
Technology Power MOSFET
Rds On (Typ) 850mOhm LS + HS
Current - Output / Channel 1.6A
Current - Peak Output -
Voltage - Supply 3V ~ 5.5V
Voltage - Load 9V ~ 45V
Temperature Range - Operating -30°C ~ 150°C (TJ)
Features -
Fault Protection Over Temperature, UVLO
Mounting Type Surface Mount
Package / Case 32-WFQFN Exposed Pad
Supplier Device Package 32-QFN (5x5)
Base Product Number AP1025
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1377837-AP1025BEN
Ultra Librarian 3D Model Ultra Librarian AP1025BEN CAD Model

Description

The AP1025BEN is a full half-bridge driver IC from Asahi Kasei Microdevices/AKM.

  • Temperature Range: -30°C to 150°C
  • Application: General-Purpose, Stepper Motors
  • Technology: Power MOSFET
  • Voltage Supply: 3V to 5.5V
  • Output Configuration: Half Bridge
  • Number of Channels: 4
  • Current per Channel: 1.6A
  • Fault Protection: Over-Temperature, Undervoltage Lockout
  • Voltage Load Range: 9V to 45V
  • Rds On (Typ): 850mOhm LS + HS
  • Package: 32-WFQFN Exposed Pad
  • Mounting Type: Surface Mount
  • Product Status: Obsolete
