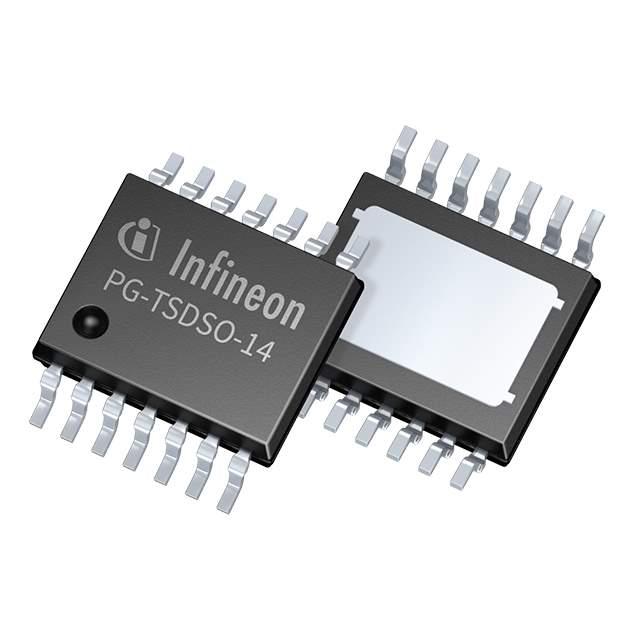

BTN70301EPAXUMA1 Real Image
Same model may have multiple batches, images only for reference.

BTN70301EPAXUMA1

Part No BTN70301EPAXUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Full, Half - Bridge Drivers
Description IC HALF BRIDGE DRIVER TSDSO-14 / Half Bridge Driver DC Motors, General Purpose SMART7 PG-TSDSO-14
Datasheet
BTN70301EPAXUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Full, Half-Bridge Drivers
Mfr Infineon Technologies
Package Tape & Reel
Output Configuration Half Bridge
Applications DC Motors, General Purpose
Interface Logic
Load Type Inductive
Technology SMART7
Rds On (Typ) 20mOhm LS, 12mOhm HS
Current - Output / Channel 7A
Current - Peak Output 17A
Voltage - Supply 6V ~ 18V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Features Diagnostic Enable, Enable, SENSE
Fault Protection Current Limiting, Over Current, Over Temperature, Over Voltage, Short Circuit
Mounting SMD (SMT)
Package / Case 14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package PG-TSDSO-14
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 448-BTN70301EPAXUMA1CT,448-BTN70301EPAXUMA1DKR,448-BTN70301EPAXUMA1TR,SP003429138
Standard Package 3,000
Win Source Part Number 1148366-BTN70301EPAXUMA1
Ultra Librarian 3D Model Ultra Librarian BTN70301EPAXUMA1 CAD Model

Description

The Infineon Technologies BTN70301EPAXUMA1 is an integrated circuit that is used for full and half-bridge drivers.

  • Feature: Diagnostic Enable and Sense
  • Current Output: 7A
  • Output Configuration: Half-Bridge
  • Peak Output Current: 17A
  • Package: Tape and Reel
  • Package/Case: 14-TSSOP (0.154", 3.90mm Width) Exposed Pad
  • Win Source Part Number: 1148366-BTN70301EPAXUMA1
