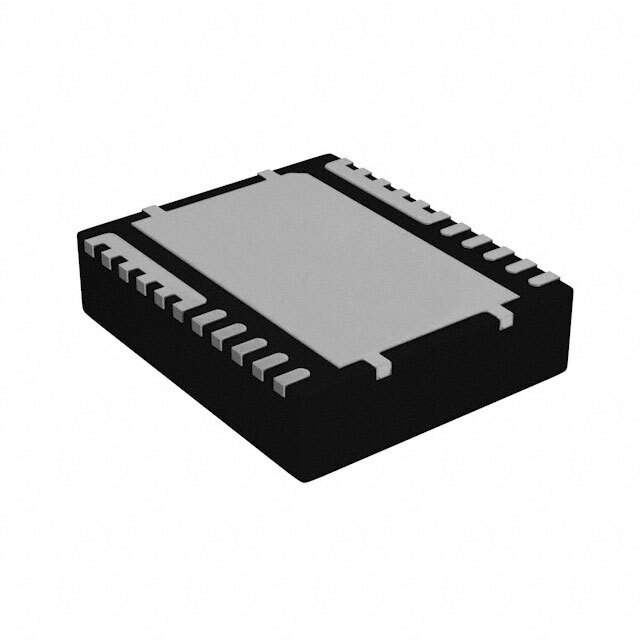

Product Overview: Texas Instruments CSD95378BQ5M

The CSD95378BQ5M from Texas Instruments is a state-of-the-art synchronous buck NexFET™ smart power stage that delivers high efficiency and performance for power supply solutions. Designed to meet the rigorous demands of today's high-performance computing and telecommunication applications, this compact and integrated power stage is an ideal choice for engineers looking to enhance power density and efficiency in their designs.

The CSD95378BQ5M incorporates an advanced driver IC, two power MOSFETs, and a high-performance integrated inductor in a small 5mm x 6mm outline package. This integration facilitates a reduction in component count and board space, making it perfect for space-constrained applications. With its optimized layout, the CSD95378BQ5M ensures excellent thermal performance and minimal parasitic inductance, leading to reduced switching losses and better overall system efficiency.

Featuring a wide input voltage range, the CSD95378BQ5M supports various applications and provides a continuous output current, making it extremely versatile. Its advanced control features include a tri-state PWM input that allows for precise control of the power stage, enabling smooth transitions between different power states and enhancing the power system's responsiveness.

The CSD95378BQ5M also incorporates multiple protection features to ensure safe and reliable operation under adverse conditions. These include under-voltage lockout (UVLO), over-current protection (OCP), and thermal shutdown (TSD). The device's adaptive dead-time and shoot-through protection further enhance its reliability and efficiency.

In summary, the Texas Instruments CSD95378BQ5M is a robust and efficient solution for designers looking to optimize power management in their next-generation electronic systems. Its integration, performance, and protection features make it a top choice for applications requiring high efficiency, compact size, and reliability.
