Product Overview: Texas Instruments BQ25601DRTWR

The BQ25601DRTWR is a highly integrated battery charge management IC from the renowned semiconductor manufacturer, Texas Instruments (TI). Designed to cater to the needs of energy-efficient and compact portable electronics, this advanced charging solution is ideal for a wide range of applications including smartphones, tablets, drones, and other personal electronic devices.

At the heart of the BQ25601DRTWR is a switch-mode battery charge management and system power path management device. It supports high-efficiency charging and extends battery life with its intelligent power path management, which allows the system to be powered from the battery or the input source. The integration of a high-performance charging algorithm ensures fast and safe charging of single-cell Li-Ion and Li-polymer batteries.

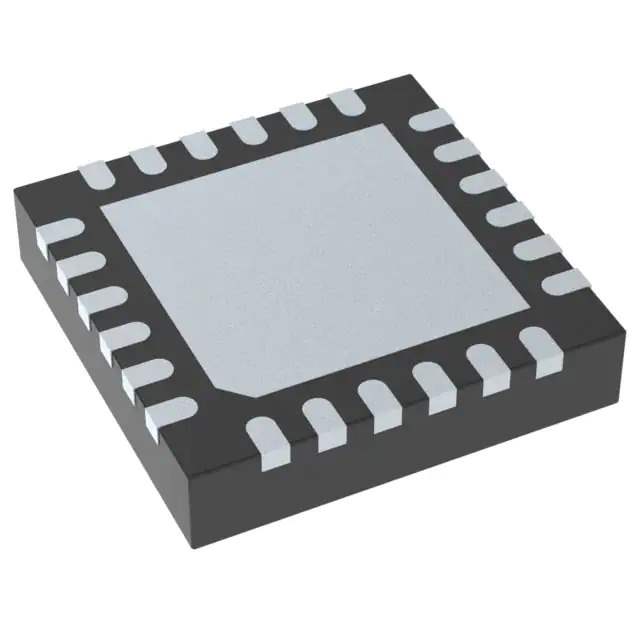

This charge controller comes in a small 3x3 QFN package, making it suitable for space-constrained applications. It features a wide input voltage range from 3.9V to 13.5V, which allows it to work with various power adapters. The charging current is programmable up to 3 A, and the charging voltage is programmable up to 4.608 V, offering flexibility to work with different battery sizes and chemistries.

The BQ25601DRTWR also incorporates a range of safety features to protect both the battery and the device. These include thermal regulation, input overvoltage protection, battery overvoltage protection, and safety timers. Additionally, it provides system load balancing by automatically reducing the charge current when the system load exceeds the input current limit.

For enhanced user experience, the BQ25601DRTWR includes an I2C interface for charge parameter configuration and status reporting, as well as an LED driver to indicate charge status. Its high level of integration reduces the external component count, which not only saves board space but also simplifies the design process, making it an ideal choice for quick and efficient product development.

In summary, the Texas Instruments BQ25601DRTWR is a sophisticated, feature-rich battery charge management IC that offers a compact, efficient, and safe charging solution for the latest portable electronic devices.
