Product Overview: ADS8688AEVM-PDK from Texas Instruments

The ADS8688AEVM-PDK from Texas Instruments is a comprehensive evaluation platform designed to allow engineers to thoroughly assess the capabilities and features of the ADS8688A series of precision analog-to-digital converters (ADCs). The kit provides a robust hardware setup, paired with user-friendly software, to facilitate the testing and development of systems that require high-precision data acquisition.

Key Features of the ADS8688AEVM-PDK

• Precision ADC Evaluation Module (EVM): At the heart of the PDK is the ADS8688AEVM, which showcases the ADS8688A ADC's 16-bit performance, 8-channel multiplexed inputs, and a sampling rate of up to 500 kSPS.
• Integrated Software: The kit comes with an intuitive software application that enables users to control the ADC and visualize the conversion results in real-time, simplifying the data analysis process.
• Flexible Input Configurations: The EVM supports various input configurations, including single-ended, differential, and bipolar input ranges, making it versatile for different signal types.
• Reference Voltage Options: Users can select from onboard reference voltage options or supply an external reference to meet specific accuracy requirements.
• Easy Connectivity: The evaluation module interfaces with a PC via a USB connection, ensuring quick setup and data transfer without the need for additional hardware.

Applications

The ADS8688AEVM-PDK is ideal for a range of applications that demand high accuracy and fast sampling rates, such as:

• Industrial data acquisition systems
• Automated test equipment
• Medical instrumentation
• Motor control
• Power quality monitoring

What's Included in the Kit?

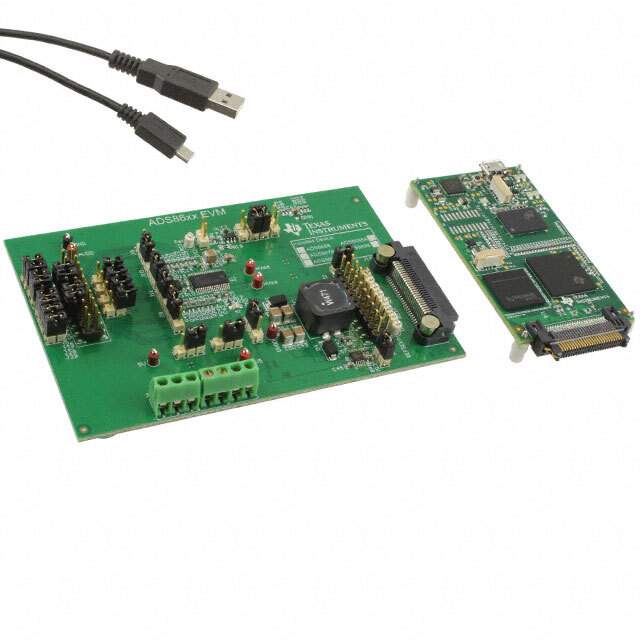

The PDK includes the ADS8688AEVM, a USB cable for PC connectivity, and the necessary software to get started with the evaluation process. The user-friendly interface and comprehensive documentation support a seamless development experience from initial setup to in-depth testing.

Overall, the ADS8688AEVM-PDK from Texas Instruments is an indispensable tool for engineers and designers seeking to leverage the high-performance characteristics of the ADS8688A ADCs in their projects.
