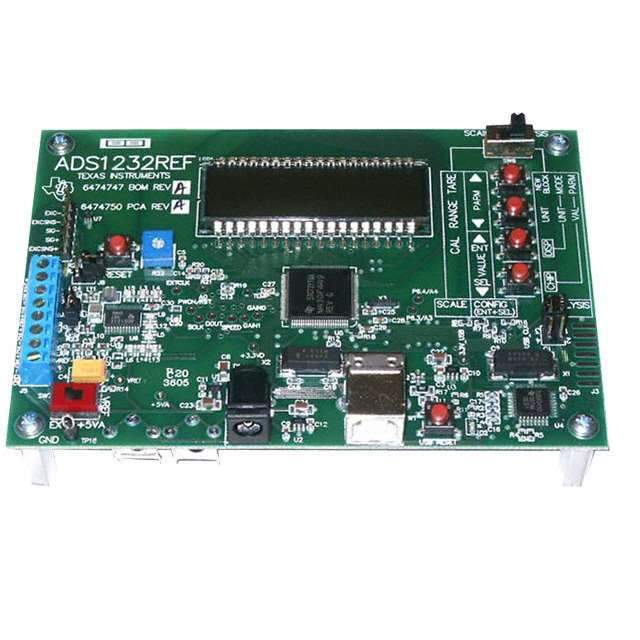

The ADS1232REF from Texas Instruments is a high-precision, 24-bit analog-to-digital converter (ADC) designed for weigh scales and industrial control applications. This reference design provides users with a comprehensive evaluation platform for the ADS1232, showcasing its performance in a typical weigh scale design.

Key Features

• High Precision: With its 24-bit resolution and low-noise performance, the ADS1232REF is capable of detecting minute voltage changes, making it ideal for high-precision measurements.
• Integrated Noise Rejection: The onboard low-noise programmable gain amplifier (PGA) and synchronous modulator provide excellent 50Hz and 60Hz rejection, ensuring stable measurements in electrically noisy environments.
• Flexible Data Rates: The device supports data rates up to 80SPS (samples per second), allowing users to balance speed and resolution as needed for their specific application.
• On-Board Calibration: The ADS1232REF features system-level calibration functions, including offset and full-scale calibration, which simplify system design and enhance measurement accuracy.

Applications

• Weigh Scales
• Industrial Process Control
• Force and Pressure Measurement Systems
• Medical Instrumentation

Support and Resources

Texas Instruments provides extensive support for the ADS1232REF, including detailed documentation, reference designs, and evaluation software. This allows designers to quickly integrate the ADC into their projects and reduce time-to-market. Additionally, the ADS1232REF is backed by TI's comprehensive technical support through their online forums and customer service channels.

Quality and Reliability

As with all Texas Instruments products, the ADS1232REF is manufactured to the highest quality standards, ensuring reliability and performance in even the most demanding applications. The device is available in a compact, lead-free package that is both RoHS compliant and designed to meet TI's stringent environmental and durability requirements.
