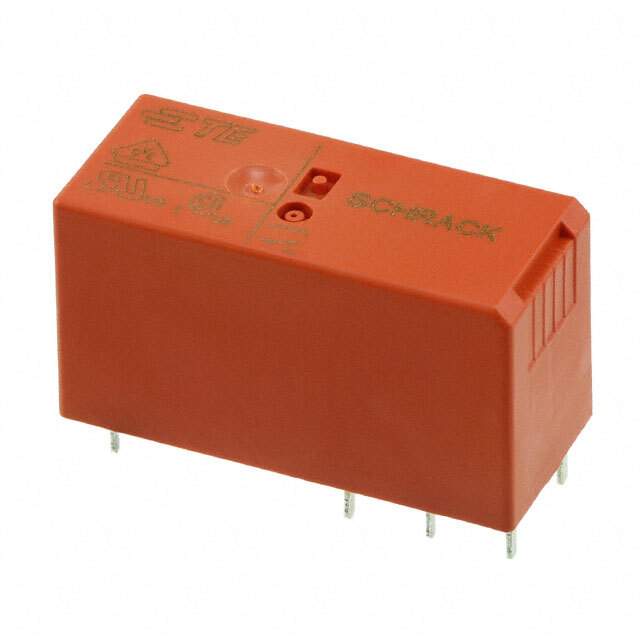

The TE Connectivity Potter & Brumfield Relays is a non-latching general-purpose relay with a coil voltage of 18VDC.

• It has: a SPDT (1 Form C) contact form and a contact rating of 16A.
• The relay: features insulation - Class F and sealed - flux protection, making it ideal for use in harsh environments.
• The through-hole mounting style: and PC pin termination make it easy to install.
• The operate time: and release time are 8ms and 6ms respectively, while the turn on voltage (max) and turn off voltage (min) are 12.6VDC and 1.8VDC respectively.
• The relay: is designed to switch up to 400VAC and has a coil power of 400mW.
• It operates: in a temperature range of -40°C to 85°C and is currently in limited supply.
