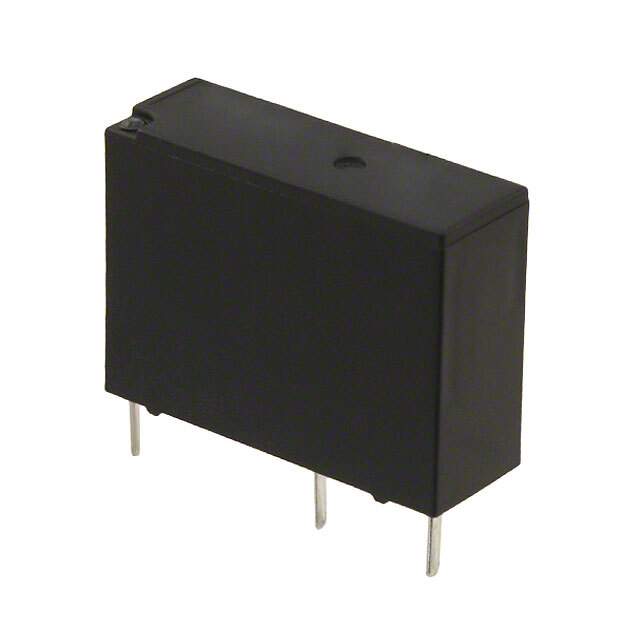

G5NB-1A-E DC24 Real Image
Same model may have multiple batches, images only for reference.

G5NB-1A-E DC24

Part No G5NB-1A-E DC24
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 24V / General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Omron Electronics Inc-EMC Div
Series G5NB-E
Package Tray
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5 A
Switching Voltage 250VAC, 30VDC - Max
Coil Current 8.3 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Must Operate Voltage 18 VDC
Must Release Voltage 2.4 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Relay Type General Purpose
Coil Resistance 2.88 kOhms
Base Product Number G5NB
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Other Names Z2773,Q11589259,G5NB-1A-E-DC24BYOMZ,G5NB1AEDC24BYOMZ,G5NB1AEDC24,G5NB-1A-E DC24 BY OMZ (N) (A),G5NB5030R,G5NB-1A-EDC24,G5NB1AEDC24BYOMB,G5NB1AEDC24BYOMZNA,G5NB1AE24DC,G5NB6001M
Standard Package 500
Win Source Part Number 959185-G5NB-1A-E DC24
Ultra Librarian 3D Model Ultra Librarian G5NB-1A-E DC24 CAD Model

Description

The Omron G5NB-E series relay is a general-purpose non-latching relay with a PC pin termination style.

  • Series: G5NB-E
  • Type: General-Purpose, Non-Latching
  • Termination Style: PC Pin
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.88 kOhms
  • Contact Rating: 5A
  • Switching Voltage: 250VAC and 30VDC
  • Protection: Sealed Flux
  • Mounting: Through-Hole
  • Operating Temperature: -40°C to 70°C
  • Ideal for: Power relays over 2 Amps
  • Package: Tray
  • Standard Package: 500
