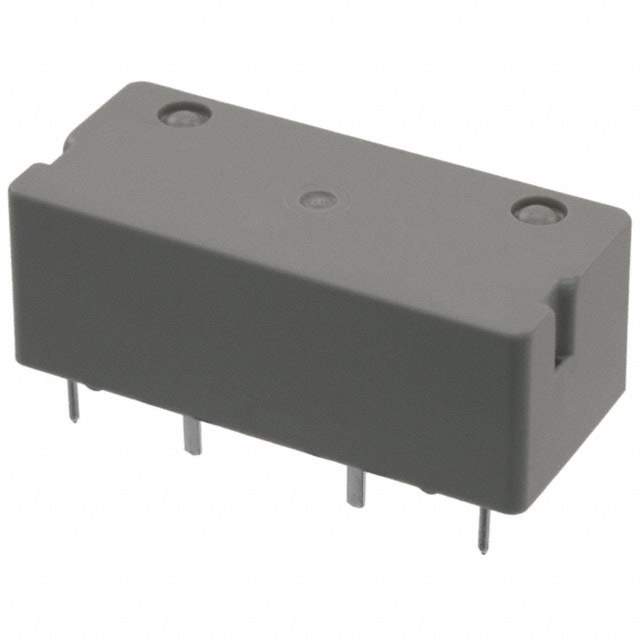

ST1-DC48V-F Real Image
Same model may have multiple batches, images only for reference.

ST1-DC48V-F

Part No ST1-DC48V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description 1a1b/2a 8A polarized power relays | RELAY GEN PURPOSE DPST 8A 48V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Box
Mounting Style Through Hole
Coil Voltage 48VDC
Contact Form DPST-NO/NC (1 Form A, 1 Form B)
Contact Rating (Current) 8A
Switching Voltage 380VAC, 250VDC - Max
Coil Current 5.3mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 38.4 VDC
Must Release Voltage 4.8 VDC
Operate Time 15ms
Release Time 10ms
Temperature Range - Operating -40°C ~ 60°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 9 kOhms
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1260149-ST1-DC48V-F
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ST1-DC48V-F CAD Model

Description

The Panasonic Electric Works ST1-DC48V-F is a DPST-NO/NC (1 Form A, 1 Form B) general-purpose relay with a contact rating (current) of 8A.

  • Switching Voltage: 380VAC, 250VDC - Max
  • Coil Voltage: 48VDC
  • Must Operate Voltage: 38.4 VDC
  • Must Release Voltage: 4.8 VDC
  • Coil Resistance: 9 kOhms
  • Coil Current: 5.3mA
  • Operate Time: 15ms
  • Release Time: 10ms
  • Mounting Technology: Through hole
  • Seal Rating: Sealed - fully
  • Category: Relays
  • Packaging: Box
