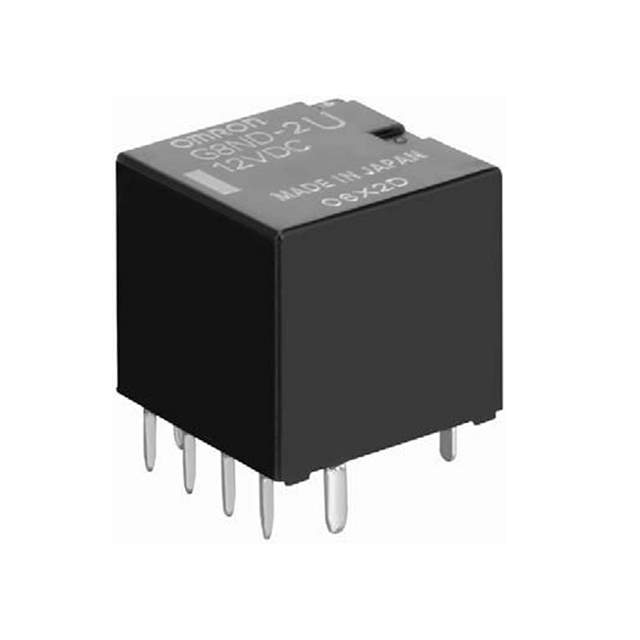

G8ND2DC12SK Real Image
Same model may have multiple batches, images only for reference.

G8ND2DC12SK

Part No G8ND2DC12SK
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description Electromechanical Relay SPDT 30A 12VDC 225Ohm Through Hole
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Coil Current 53.3 mA
Coil Power 640 mW
Coil Resistance 225 Ω
Coil Type Non-Latching
Coil Voltage (DC) 12 V
Contact Current Rating 30 A
Contact Material Cadmium, Silver, Tin
Max Current Rating 30 A
Maximum Operating Temperature 85 °C
Max Voltage Rating (DC) 16 V
Min Operating Temperature -40 °C
Mount Through Hole
Operate Time 10 ms
Power Consumption 640 mW
Radiation Hardening No
Relay Type Automotive
Release Time 10 ms
RoHS Non-Compliant
Termination PC Pin
Throw Configuration SPDT
Win Source Part Number 969178-G8ND2DC12SK
Categories Power Relays,Over 2 Amps
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian G8ND2DC12SK CAD Model

Description

The Omron G8ND2DC12SK Power Relay is a high-quality electronic component that is designed for use in various industrial and commercial applications.

  • Relay Type: Non-Latching
  • Mounting Type: Through-Hole
  • Contact Material: Cadmium, Silver, and Tin
  • Coil Resistance: 225 Ω
  • Contact Current Rating: 30 A
  • Operate Time: 10 ms
  • Release Time: 10 ms
