Same model may have multiple batches, images only for reference.

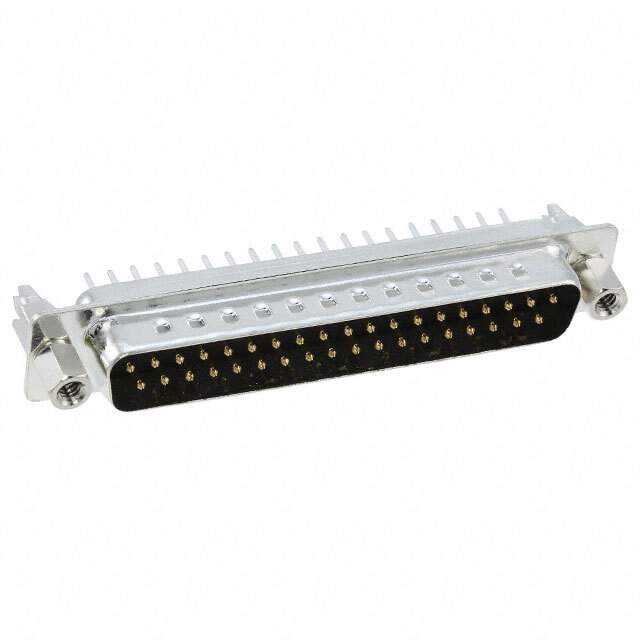

627-037-220-047 Real Image
Same model may have multiple batches, images only for reference.

627-037-220-047

Part No 627-037-220-047
Manufacturer EDAC Inc.
Catalog D - Sub Connectors
Description CONN D-SUB PLUG 37P PNL MNT SLDR / 37 Position D-Sub Plug, Male Pins Connector
Datasheet
627-037-220-047 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr EDAC Inc.
Series 627 (Metal)
Package Tube
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 37
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 4 (DC, C)
Contact Type Signal
Flange Feature Board Side (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A per Contact
Features Board Lock, Grounding Indents, Shielded
Color Black
Dielectric Material Polyester Thermoplastic
Contact Material Brass
Temperature Range - Operating -55°C ~ 85°C
Base Product Number 627-037
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 151-1480-5,627-037-220-047-ND
Standard Package 25
Win Source Part Number 1169389-627-037-220-047
Ultra Librarian 3D Model Ultra Librarian 627-037-220-047 CAD Model

Description

The 627-037-220-047 is a connector interconnect manufactured by EDAC Inc.

  • Component: Connector Interconnect
  • Manufacturer: EDAC Inc.
  • Popularity: High
  • Supply and Demand: Sufficient
  • Positions: 37
  • Operating Temperature: -55°C to 85°C
  • Voltage Rating: -
