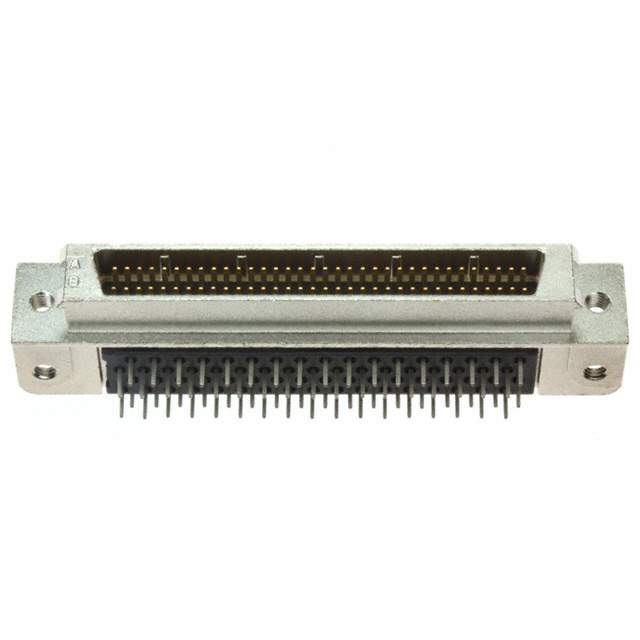

2-5174225-5 Real Image
Same model may have multiple batches, images only for reference.

2-5174225-5

Part No 2-5174225-5
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-TYPE CAP 68POS R/A SLDR
Datasheet
2-5174225-5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Status Active
Connector Style D-Type
Connector Type Cap, Male Pins
Number of Positions 68
Number of Rows 2
Shell Size, Connector Layout 0.050 Pitch x 0.100 Row to Row
Contact Type Signal
Mounting Through Hole, Right Angle
Flange Feature Housing/Shell (M2.5); Latchblocks
Termination Solder
Features Shielded
Shell Material, Finish Zinc, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Temperature Range - Operating -55°C to 85°C
Voltage Rating 100V
Current Rating 1A
Color Black
Housing Material Polybutylene Terephthalate (PBT)
Backset Spacing 0.149" (3.80mm)
Win Source Part Number 133320-2-5174225-5
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Computers & Computer Peripherals
Ultra Librarian 3D Model Ultra Librarian 2-5174225-5 CAD Model

Description

Description

The 2-5174225-5 is a versatile and dependable component, recognized for its high performance and ease of integration into various electronic systems.

Applications

  • Smart grid technology
  • Renewable energy systems
  • Security and surveillance equipment
  • Audio/visual systems

Features and Benefits

  • Wide operational temperature range
  • Easy setup and maintenance
  • Exceptional connectivity options
  • Enhanced signal integrity

Additional Details

Perfect for contemporary electronic applications, the 2-5174225-5 combines technological advancement with practical usability, ensuring user-friendly integration in numerous environments.
