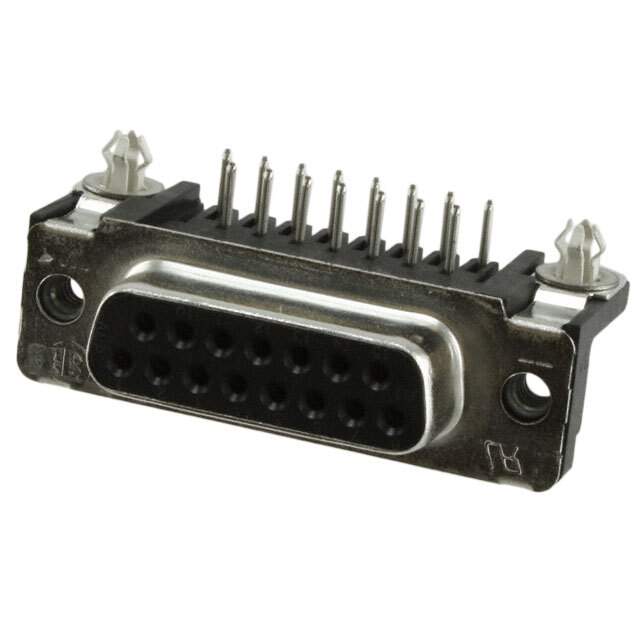

5788798-1 Real Image
Same model may have multiple batches, images only for reference.

5788798-1

Part No 5788798-1
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB RCPT 15POS R/A SLDR  /  15 Position D-Sub Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 15
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing 0.318" (8.08mm)
Features Board Lock
Voltage Rating 125V
Color Black
Dielectric Material Polyamide (PA), Nylon
Contact Material Phosphor Bronze
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5788798
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 57887981
Standard Package 104
Win Source Part Number 1203556-5788798-1
Ultra Librarian 3D Model Ultra Librarian 5788798-1 CAD Model

Description

This electronic component is a D-Sub connector with a Win Source Part Number of 1203556-5788798-1.

  • Series: AMPLIMITE HD-20
  • Positions: 15
  • Color: Black
  • Feature: Board Lock
  • Type: Receptacle
  • Contact Gender: Female Sockets
  • Contact Type: Signal
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Package: Tray
  • Style: D-Sub
  • Voltage Rating: 125V
  • Current Rating: 6A
  • Shell Material: Steel with Tin Plated Finish
  • Temperature Range: -55°C to 105°C
  • Mounting: Through Hole, Right Angle
