Same model may have multiple batches, images only for reference.

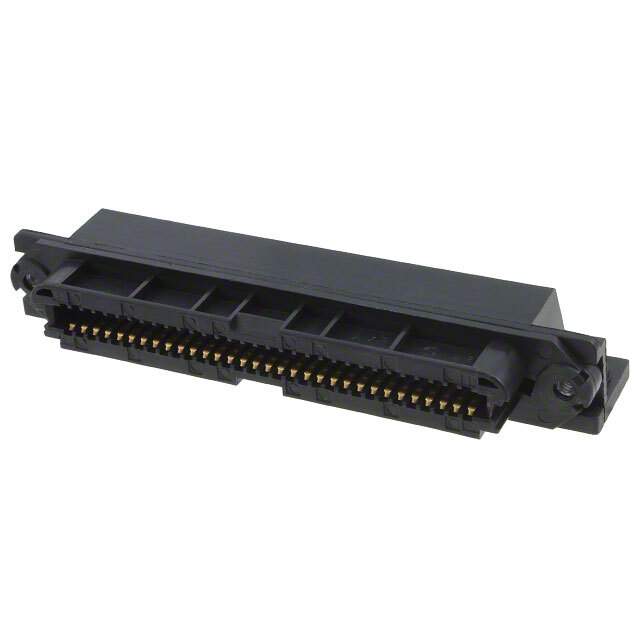

5552744-7 Real Image
Same model may have multiple batches, images only for reference.

5552744-7

Part No 5552744-7
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN RCPT 64POS R/A SOLDER  /  64 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Shaped Connectors - Centronics
Mfr TE Connectivity AMP Connectors
Series CHAMP .085
Package Tray
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 64
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Flange Feature Housing/Shell (4-40)
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 5552744
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names -5552744-7-SI,A115450,5552744-7-ND,2266-5552744-7
Standard Package 270
Win Source Part Number 1185147-5552744-7
Ultra Librarian 3D Model Ultra Librarian 5552744-7 CAD Model

Description

The 1185147-5552744-7 is a 64-position D-shaped connector from TE Connectivity AMP Connectors.

  • Series: CHAMP .085
  • Package: Tray
  • Pieces: 270
  • Contacts: Outer Shroud
  • Feature: Flange for Housing/Shell (4-40)
  • Mounting: Panel Mounted, Through Hole, Right Angle
  • Contact Finish: Gold
  • Thickness: 30.0μin (0.76μm)
