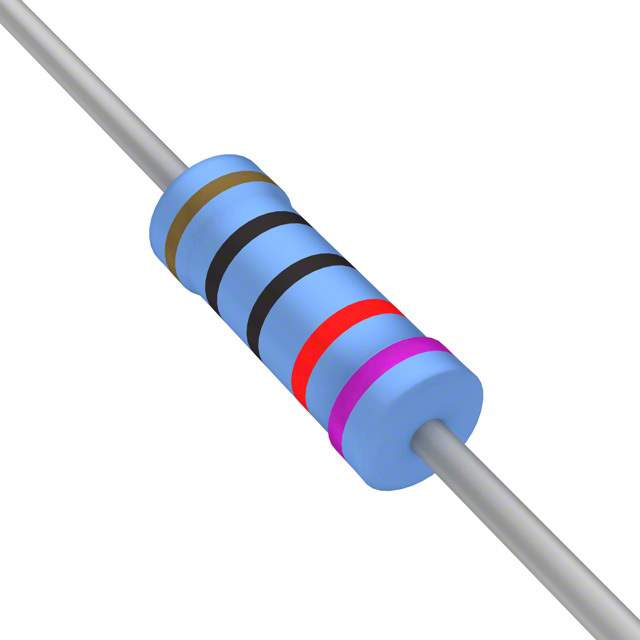

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr TE Connectivity Passive Product
Series YR, Neohm
Package Cut Tape (CT),Tape & Box (TB)
Resistance 10 kOhms
Tolerance ±0.1%
Power (Watts) 0.25W, 1/4W
Composition Metal Film
Temperature Coefficient ±15ppm/°C
Temperature Range - Operating -65°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.091" Dia x 0.248" L (2.30mm x 6.30mm)
Number of Terminations 2
Base Product Number YR1B
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.21.0090
Other Names 16227966,A105970TR-ND,A105970TB,A105970TR,1622796-6-ND,1622796-6,A105970CT
Standard Package 1,000
Win Source Part Number 1193510-YR1B10KCC
Ultra Librarian 3D Model Ultra Librarian YR1B10KCC CAD Model

Description

The YR series resistor is a through-hole resistor that has a resistance of 10 kΩ with a tolerance of ±0.1%.

  • Resistance: 10 kΩ
  • Tolerance: ±0.1%
  • Power Rating: 0.25W or 1/4W
  • Temperature Coefficient: ±15ppm/°C
  • Package/Case: Axial with a dimension of 0.091" Dia x 0.248" L (2.30mm x 6.30mm)
  • Number of Terminations: 2
  • Packaging: Cut Tape (CT) or Tape and Box (TB)
  • Operating Temperature Range: -65°C to 155°C
  • Manufacturer: TE Connectivity Passive Product
