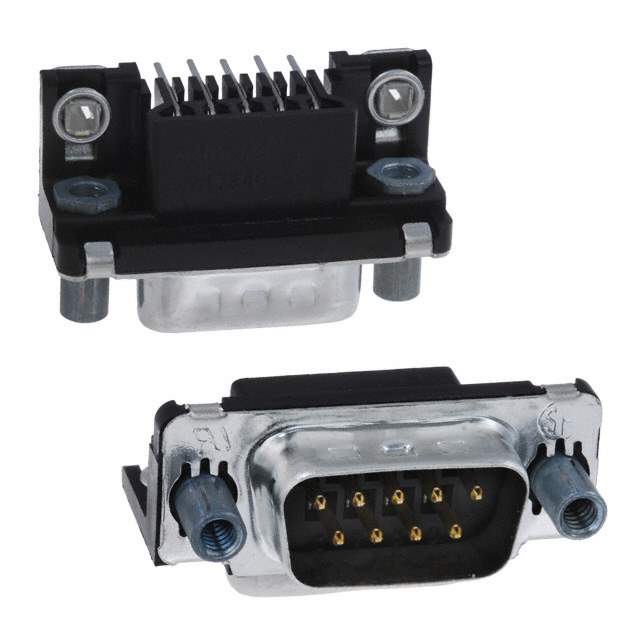

5747840-5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Backset Spacing 0.318" (8.08mm)
Features Board Lock, Ground Strap, Grounding Indents
Voltage Rating 125V
Color Black
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747840
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 57478405,2266-5747840-5,A32093
Standard Package 130
Win Source Part Number 1174844-5747840-5
Ultra Librarian 3D Model Ultra Librarian 5747840-5 CAD Model

Description

The TE Connectivity AMP Connectors 5747840-5 is a high-quality D-Sub Connector that has a voltage rating of 125V.

  • Voltage Rating: 125V
  • Current Rating: 6A
  • Features: Board lock, grounding indents, and a ground strap
  • Temperature Range: -55°C ~ 105°C
  • Supply and Demand Status: Balanced
  • Applications: Various applications
