Categories Integrated Circuits (ICs)
Manufacturer STMicroelectronics
Series ST7
Packaging Tray
Core Processor ST7
Core Size 8-Bit
Speed 8MHz
Connectivity SCI, SPI
Peripherals POR, PWM, WDT
Number of I/O 32
Program Memory Size 8KB (8K x 8)
Program Memory Type FLASH
RAM Size 384 x 8
Supply Voltage 2.85 V ~ 3.6 V
Data Converters A/D 12x10b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 85°C (TA)
Package 44-LQFP
Win Source Part Number 1260413-ST72F324LJ2T6
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Limited
Family Name ST72F324LJ2
Introduction Date December 15, 1998
ECCN EAR99
Quantity per package 160
Ultra Librarian 3D Model Ultra Librarian ST72F324LJ2T6 CAD Model

Description

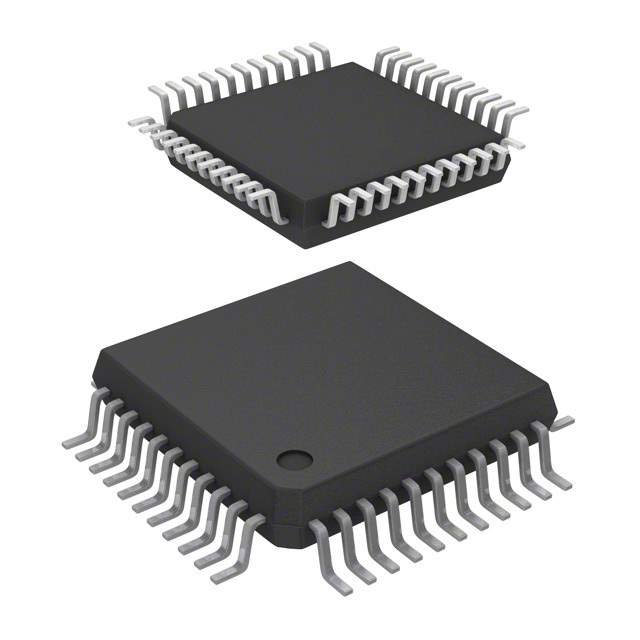

ST72F324LJ2T6 Microcontroller by STMicroelectronics

The ST72F324LJ2T6 is a high-performance 8-bit microcontroller from STMicroelectronics, designed with a keen focus on advanced control applications. This microcontroller is part of the ST7 family, which is renowned for its robust architecture, rich feature set, and flexibility, making it an ideal choice for a broad range of applications.

Key Features:

  • CPU: The ST72F324LJ2T6 boasts a high-quality 8-bit CPU, offering up to 16 MHz clock speed, which provides the computational power necessary for complex tasks and enables efficient processing in embedded systems.
  • Memory: Equipped with 32 Kbytes of Flash program memory, it ensures ample space for application code, which is essential for long-term reliability due to its in-circuit programming and in-application programming capabilities. Additionally, it has 1 Kbyte of RAM and 256 bytes of EEPROM for data storage, which is indispensable for applications requiring data retention after power-off.
  • I/O Ports: The microcontroller includes 28/32 programmable I/O lines, giving developers the flexibility to connect a wide array of peripherals and to design versatile control systems.
  • Advanced Control Peripherals: It encompasses a range of peripherals, such as an 8-bit timer, a 16-bit timer, and a synchronous serial communication interface, which are crucial for managing time-dependent processes and for establishing communication with other digital devices.
  • Robust Protection Features: The device incorporates features like low voltage reset, watchdog timer, and an oscillator safeguard, which contribute to the system's stability and reliability by protecting against unforeseen power or logic issues.

Applications:

The versatility of the ST72F324LJ2T6 makes it suitable for a wide range of applications, including but not limited to:

  • Automotive systems
  • Industrial control systems
  • Home appliances
  • Personal electronics

The ST72F324LJ2T6 microcontroller from STMicroelectronics is designed to meet the demands of modern embedded control systems, combining performance, memory capacity, and advanced peripherals in a compact package, making it a top choice for engineers and developers in various industries.
