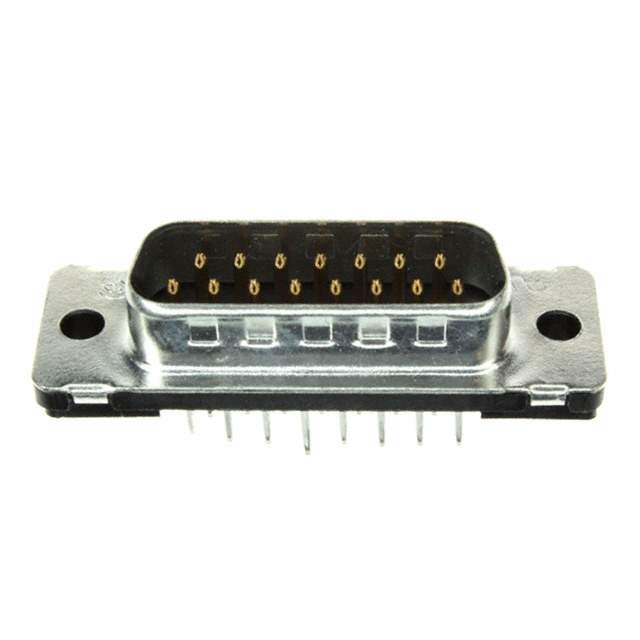

5747872-4 Real Image
Same model may have multiple batches, images only for reference.

5747872-4

Part No 5747872-4
Manufacturer TE Connectivity
Catalog D - Sub Connectors
Description CONN D-SUB PLUG 15POS VERT SLDR / 15 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HD-20
Package Tube
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 2
Mounting Type Through Hole
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 6A
Features Grounding Indents
Voltage Rating 125V
Color Black
Dielectric Material Thermoplastic
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 5747872
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 57478724,A34067
Standard Package 13
Win Source Part Number 1216661-5747872-4
Ultra Librarian 3D Model Ultra Librarian 5747872-4 CAD Model

Description

The AMPLIMITE HD-20 series from TE Connectivity AMP Connectors offers a black D-Sub connector plug with male pins and 15 positions.

  • Connector Type: Signal
  • Rows: Two
  • Termination: Solder
  • Contact Finish: Gold
  • Voltage Rating: 125V
  • Material Flammability Rating: UL94 V-0
  • Shell Material: Steel
  • Shell Plating: Tin-plated
  • Connector Layout: 2 (DA, A)
  • Mounting Type: Through hole
  • Temperature Range: -55°C to 105°C
  • Current Rating: 6A
  • Standard Package: 13 units
