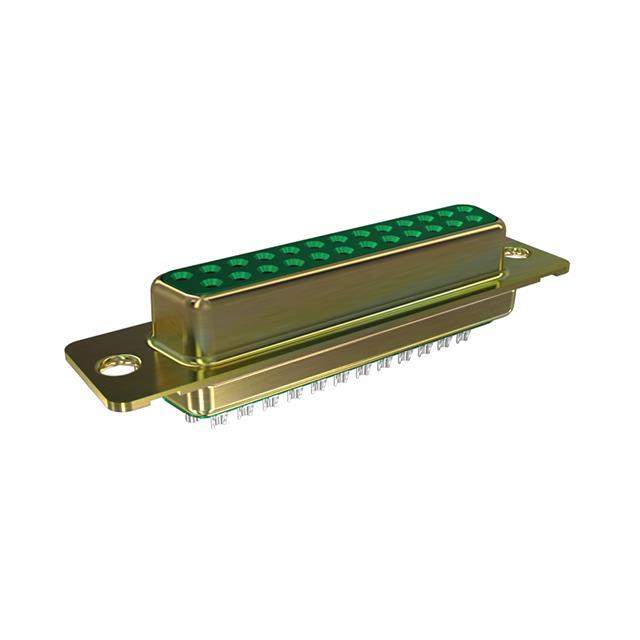

DDM50S043 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Amphenol ICC (FCI)
Series DM HE501
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 50
Number of Rows 3
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 5 (DD, D)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Yellow Cadmium Plated
Contact Finish Gold
Material Flammability Rating UL94 V-0
Current Rating (Amps) 7.5A per Contact
Voltage Rating 300V
Dielectric Material Thermoplastic
Contact Material Brass
Temperature Range - Operating -55°C ~ 125°C
Base Product Number DDM50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Standard Package 20
Win Source Part Number 1220636-DDM50S043
Ultra Librarian 3D Model Ultra Librarian DDM50S043 CAD Model

Description

The 1220636-DDM50S043 electronic component is a connector product manufactured by Amphenol ICC (FCI).

  • Series: DM HE501
  • Positions: 50
  • Connector Type: Receptacle
  • Contact Gender: Female Sockets
  • Contact Type: Signal
  • Number of Rows: 3
  • Termination: Solder Cup
  • Contact Finish: Gold
  • Package: Tray
  • MSL Level: 1 (Unlimited)
  • Current Rating (Amps): 7.5A per Contact
  • HTSUS: 8536.69.8000
