Part No 1532204-1
Manufacturer TE Connectivity
Catalog D - Sub Connectors

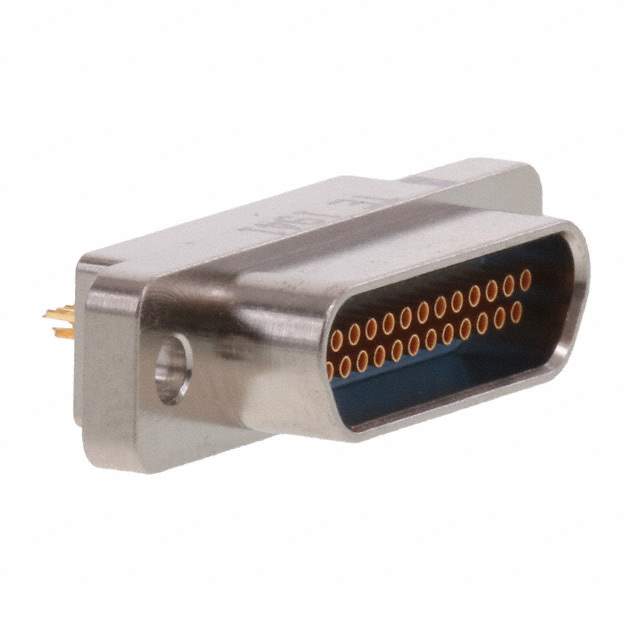

Description CONN MICRO-D RCPT 25POS SLDR CUP  /  25 Position D-Type, Micro-D Receptacle, Female Sockets Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr TE Connectivity Aerospace, Defense and Marine
Series Military, MIL-DTL-83513, MICRODOT (MCKS)
Package Bulk
Connector Style D-Type, Micro-D
Connector Type Receptacle, Female Sockets
Number of Positions 25
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Metal, Nickel Plated, Electroless
Contact Finish Gold
Contact Finish Thickness 50.0µin (1.27µm)
Features Reverse Layout
Base Product Number 1532204
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Other Names A144821,094-6426-000-ND,M83513/02-DN-MIL,1532204-1-MIL,M83513/02-DN, MCKS-N1-B-25SS,094-6426-000,1532204-1-ND,094-6426-000-MIL,M83513/02-DN
Standard Package 1
Win Source Part Number 1217180-1532204-1
Ultra Librarian 3D Model Ultra Librarian 1532204-1 CAD Model

Description

The TE Connectivity Aerospace, Defense and Marine 1217180-1532204-1 is a Military, MIL-DTL-83513, MICRODOT (MCKS) series D-Type, Micro-D style connector.

  • Series: Military, MIL-DTL-83513, MICRODOT (MCKS)
  • Connector Style: D-Type, Micro-D
  • Connector Type: Receptacle
  • Gender: Female
  • Contact Positions: 25
  • Contact Rows: 2
  • Layout: Reverse
  • Termination: Solder Cup
  • Contact Finish: Gold
  • Contact Finish Thickness: 50.0µin (1.27µm)
  • Housing/Shell Material: Metal
  • Shell Finish: Nickel Plated, Electroless
  • Thread: Unthreaded
  • MSL Level: Unlimited
  • ECCN: EAR99
  • Package: Bulk
  • Standard Package: 1
