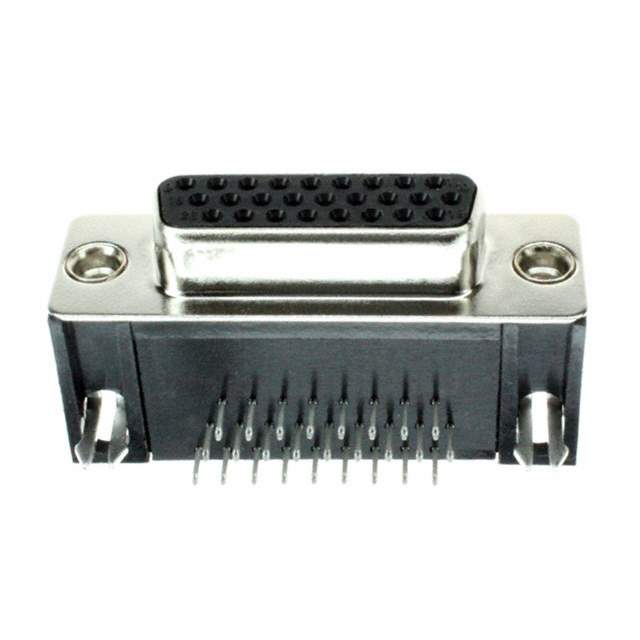

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Status Active
Connector Style D-Sub, High Density
Connector Type Receptacle, Female Sockets
Number of Positions 26
Number of Rows 3
Shell Size, Connector Layout 2 (DA, A) High Density
Contact Type Signal
Mounting Through Hole, Right Angle
Flange Feature Housing/Shell (4-40)
Termination Solder
Features Board Lock
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C to 105°C
Voltage Rating 125V
Current Rating 2A
Color Black
Housing Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Win Source Part Number 126283-5748481-5
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name 5748481
Introduction Date March 10, 2008
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 5748481-5 CAD Model

Description

Product Description

The 5748481-5 component is engineered for excellence in the field of electronic connectivity solutions. This connector offers superior reliability and ease of use.

Features and Benefits

  • Efficient connectivity with minimal signal loss.
  • User-friendly design for easy installation.
  • High durability for extended service life.

Applications

  • Data networking systems.
  • Telecommunications infrastructure.
  • Industrial automation controls.

Additional Details: The 5748481-5 provides a stable connection interface, ensuring data integrity across various platforms and applications.
