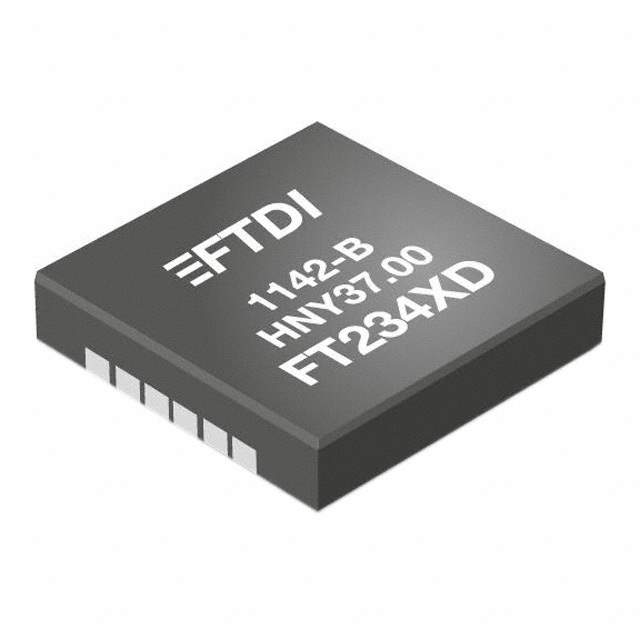

The FT234XD-T is a cutting-edge USB to serial UART interface device from the renowned manufacturer FTDI, Future Technology Devices International Ltd. This compact IC offers a convenient and reliable method for transferring serial data to and from a USB interface without the need for extensive protocol knowledge or complex hardware configurations.

Key Features

• USB 2.0 Full Speed Compatible: The FT234XD-T operates at USB 2.0 full speed, ensuring fast and efficient data transfer rates.
• Integrated Clock Circuit: No external crystal is needed as the device comes with an integrated clock circuit that simplifies design and reduces external component count.
• Low Power Consumption: This device is designed for power-sensitive applications, with a low operating current and a USB suspend current of less than 125 µA, making it ideal for battery-powered devices.
• Configurable I/O Pins: The FT234XD-T offers configurable CBUS I/O pins that can be used for additional functions such as a clock output, GPIO, or for modem handshake signals.
• Driver Support: It has comprehensive driver support across multiple operating systems, which simplifies integration and ensures compatibility with most modern platforms.

Applications

The versatility of the FT234XD-T makes it suitable for a wide range of applications, including but not limited to:

• USB instrumentation
• Serial communication for embedded systems
• USB to RS232/RS422/RS485 converters
• Industrial control interfaces
• USB dongles and interface bridging

Technical Specifications

• Data Transfer Rates up to 3 Mbaud (RS422/RS485 and at TTL levels) and 1 Mbaud (RS232)
• Integrated 2048-byte EEPROM for storing device descriptors and CBUS I/O configuration
• Support for battery charging detection, allowing for USB peripheral products to better manage charging

The FT234XD-T from FTDI is an excellent choice for professionals and hobbyists alike who require a reliable and straightforward interface for UART communication over USB. Its small form factor and comprehensive feature set make it an essential component for modern electronic projects.
