Products specifications

Category Connectors, Interconnects>Solid State Lighting Connectors - Contacts
Mfr TE Connectivity AMP Connectors
Package Tape & Reel (TR),Cut Tape (CT)
Style Board to Cable/Wire
Connector Type Contact, Blade
Number of Positions 1
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 18-22 AWG
Contact Finish Tin
Contact Material Copper Alloy
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 125 V
Current Rating (Amps) 6A
Base Product Number 2058301
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names A99896TR,A99896CT,-2058301-1-SI,20583011
Standard Package 5,000
Win Source Part Number 1108220-2058301-1
Ultra Librarian 3D Model Ultra Librarian 2058301-1 CAD Model

Description

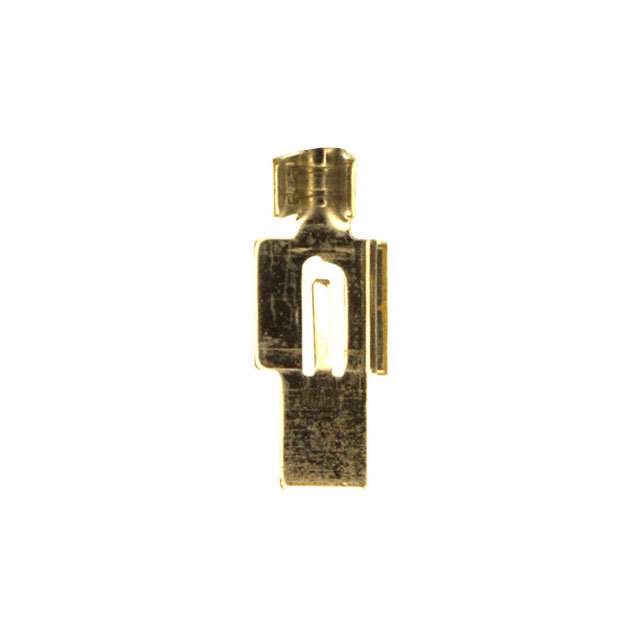

The 1108220-2058301-1 is a 1-position blade contact connector, designed for board to cable/wire applications.

  • Termination: Crimp
  • Wire Gauge: 18-22 AWG
  • Contact Finish: Tin
  • Contact Material: Copper Alloy
  • Package: Tape and Reel
  • Mounting: Free-Hanging (In-Line)
  • Voltage Rating: 125V
  • Current Rating: 6A
  • Application: Solid State Lighting
  • Temperature Range: -40°C to 105°C
  • Manufacturer: TE Connectivity AMP Connectors
  • Standard Package: 5,000
