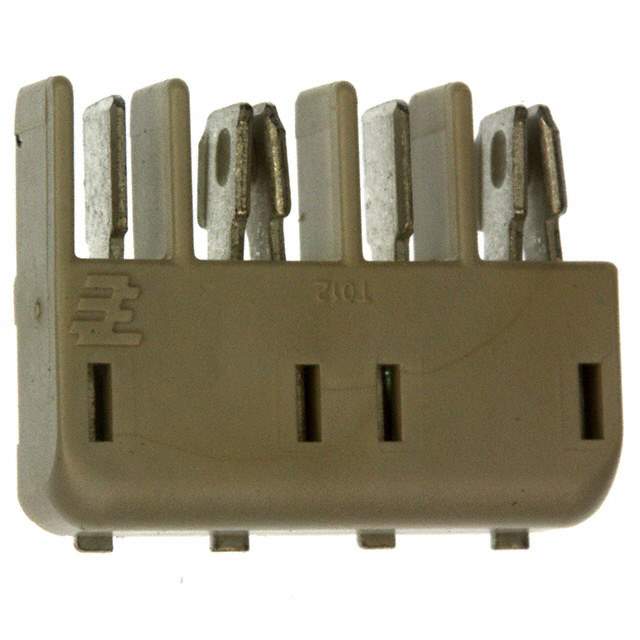

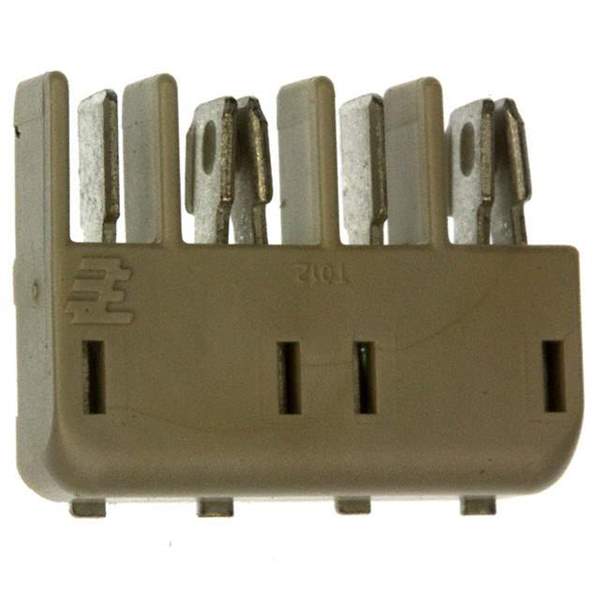

1954289-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Solid State Lighting Connectors
Mfr TE Connectivity AMP Connectors
Package Tape & Reel
Style Board to Board
Connector Type Blade and Receptacle, Hermaphroditic
Number of Positions 4
Mounting Type Board Edge, Surface Mount, Right Angle
Termination Solder
Pitch 0.157" (4.00mm)
Housing Color Natural
Contact Material Copper Alloy
Contact Finish Tin
Housing Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 125V
Current Rating (Amps) 6A
Base Product Number 1954289
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-1954289-2,-1954289-2-SI,A99124DKR,-1954289-2-CSI,19542892,Q5403355AH,A99124TR,A99124CT
Standard Package 1,000
Win Source Part Number 1035193-1954289-2
Ultra Librarian 3D Model Ultra Librarian 1954289-2 CAD Model

Description

This electronic component is a Blade and Receptacle, Hermaphroditic connector with 4 positions and a pitch of 0.157" (4.00mm).

  • Contact Finish: Tin
  • Connection Type: Board to Board
  • Termination: Solder
  • Voltage Rating: 125V
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Housing Color: Natural
  • Mounting Type: Board Edge, Surface Mount, Right Angle
  • Operating Temperature: -40°C ~ 105°C
  • Package: Tape & Reel
  • Quantity per Package: 1,000 units
  • Current Rating: 6A
  • Application: Solid State Lighting Connectors
